Victron AGM Super Cycle Batteries

Victron AGM Super Cycle Batteries

HTML Editor - Full Version

A new AGM battery: the Victron AGM Super Cycle battery is a truly innovative battery.

The AGM Super Cycle batteries are the result of recent battery electrochemistry developments. The paste of the positive plates is less sensitive to softening, even in case of repeated 100% discharge of the battery, and new additives to the electrolyte reduce sulfation in case of deep discharge.

Exceptional 100% depth of discharge (DoD) performance. Tests have shown that the Super Cycle battery is able to withstand at least three hundred 100% DoD cycles. The tests consist of a daily discharge to 10.8V with I = 0,2Cā‚‚ā‚€, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2Cā‚‚ā‚€.  The two hours rest period in discharged condition will damage most batteries within 100 cycles, but not the Super Cycle battery.

Victron recommend the Super Cycle battery for applications where an occasional discharge to 100% DoD, or frequent discharge to 60- 80% DoD is expected. An additional advantage of the new chemistry is a slightly smaller size and less weight compared to the standard deep cycle AGM batteries.  The internal resistance is also slightly lower compared to other standard deep cycle AGM batteries.

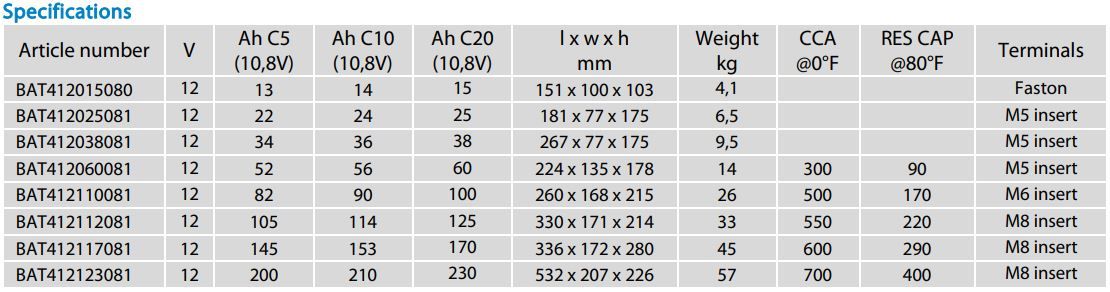

Code Image Product Details Enquire
BAT412015080
Victron AGM Super Cycle Batteries

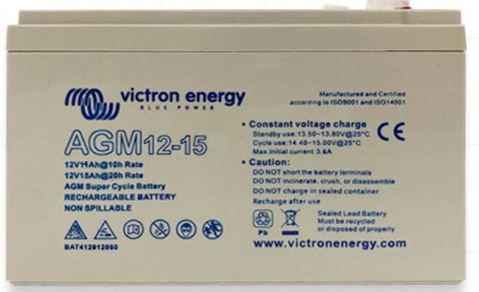

VIC 12V/15Ah AGM Super Cycle Batt. (Faston-tab 6.3x0.8mm)
BAT412025081
Victron AGM Super Cycle Batteries
VIC 12V/25Ah AGM Super Cycle Batt. (M5)
BAT412038081
Victron AGM Super Cycle Batteries

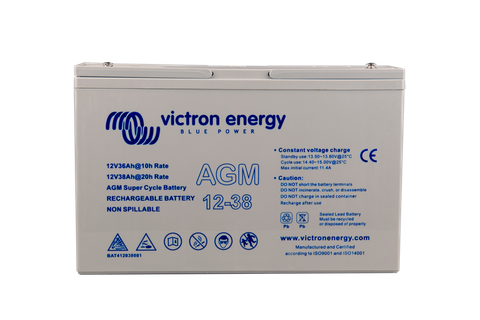

VIC 12V/38Ah AGM Super Cycle Batt. (M5)
BAT412060081
Victron AGM Super Cycle Batteries

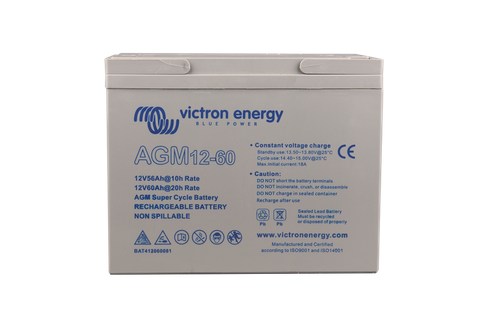

VIC 12V/60Ah AGM Super Cycle Batt. (M5)
BAT412110081
Victron AGM Super Cycle Batteries

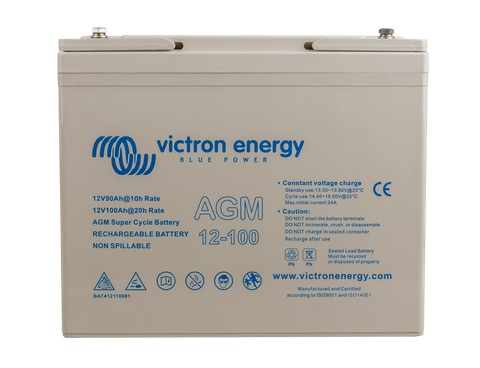

VIC 12V/100Ah AGM Super Cycle Batt. (M6)
BAT412112081
Victron AGM Super Cycle Batteries

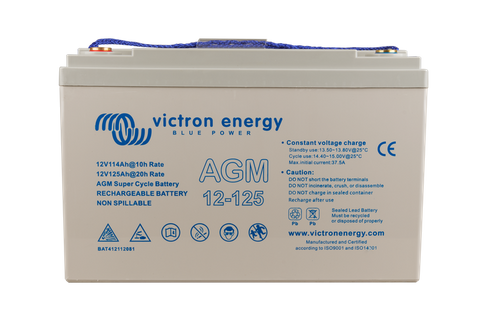

VIC 12V/125Ah AGM Super Cycle Batt. (M8)
BAT412117081
Victron AGM Super Cycle Batteries

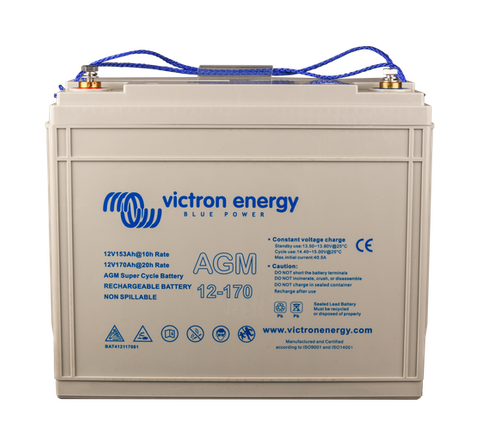

VIC 12V/170Ah AGM Super Cycle Batt. (M8)
BAT412123081
Victron AGM Super Cycle Batteries

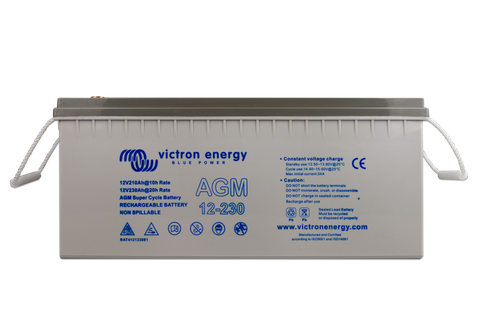

VIC 12V/230Ah AGM Super Cycle Batt. (M8)
