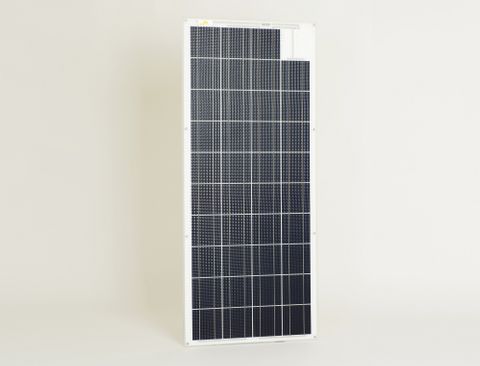

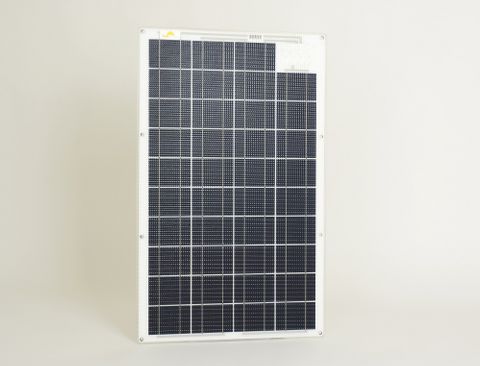

Sunware Semi Flexible Solar Panel - Outlet on Top Black

Sunware Semi Flexible Solar Panel - Outlet on Top Black

HTML Editor - Full Version

The solar panels of the series 20 and 40 black are light, very compact and extremely powerful. The monocrystalline PERC high-performance solar cells are protected in an EVA laminate and ETFE coatings against weathering. Even in diffused light conditions or in winter, the modules produce a high charging current.

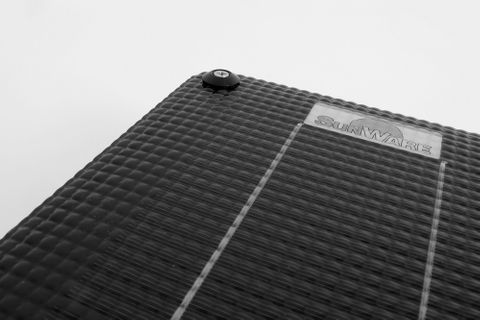

The solar panels are designed for the harsh marine and saltwater use. The cable outlet is screwed to the mounting plate, completely sealed and 100% saltwater proof. By hermetic encapsulation the cells and carrier plate are themselves well protected against the aggressive saltwater. The solar panel sizes are optimized to an absolute minimum. The distances between the cells and the panel edges are important for isolation reasons.

All solar panels have more cells than normal panels have. The additional 4 cells give the panel a higher voltage and ensure that also by flat installations on deck in hot regions the panels charge the batteries extremely powerfully.

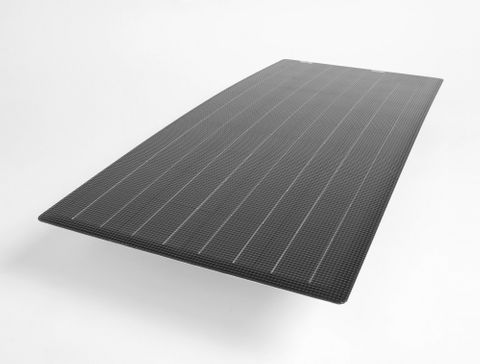

All solar panels can be screwed, glued or attached with clips. The cable has a length of 3m. The carrier material is an aluminium sandwich core. By the core material the cells are perfectly supported and protected. The solar panel adapts to curved surfaces, with maximum curvature of 3cm/m panel length.


Code Image Product Details Enquire
60222143
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20143,15 Wp Black
60222144
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20144, 22 Wp, 12V, 243 x 468 x 6mm Black
60222145
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20145, 30 Wp, 12V, 273 x 807 x 6 mm Black
60222146
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20146, 46 Wp, 12V, 273 x 1154 x 6mm Black
60222163
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20163, 33 Wp Black
60222164
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20164, 45 Wp, 12V, 481 x 426 x 6mm Black
60222165
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20165,60 Wp, 12V, 481 x 772 x 6 mm Black
60222166
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20166, 90 Wp, 12V, 481 x 1119 x 6mm Black
60222182
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20182, 50 Wp Black
60222183
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20183, 68 Wp, 12V, 469 x 689 x 6mm Black
60222184
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20184, 90 Wp, 12V, 859 x 689 x 6mm Black
60222185
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20185, 120 Wp, 12V, 689 x 1012 x 6mm Black
60222246
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 20246, 46 Wp Black
60224143
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 40143, 15 Wp Black
60224144
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 40144, 22 Wp, 12V, 243 x 468 x 6mm Black
60224145
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 40145, 30 Wp, 12V, 273 x 807 x 6 mm Black
60224146
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 40146, 46 Wp, 12V, 273 x 1154 x 6mm Black
60224163
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 40163, 33 Wp, 12V, 481 x 426 x 6mm Black
60224164
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 40164, 45 Wp Black
60224165
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 40165,60 Wp, 12V, 481 x 599 x 6mm Black
60224166
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 40166, 90 Wp, 12V, 481 x 1119 x 6mm Black
60224182
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 40182, 50 Wp, 12V, 469 x 689 x 6mm Black
60224183
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 40183, 68 Wp Black
60224185
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 40185, 120 Wp, 12V, 689 x 1012 x 6mm Black
60322145
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 22145, 60 Wp Black
60322146
Sunware Semi Flexible Solar Panel - Outlet on Top Black
SW 22146, 90 Wp Black
