Arco Zeus 48V 225A High Output Alternator

Arco Zeus 48V 225A High Output Alternator

HTML Editor - Full Version

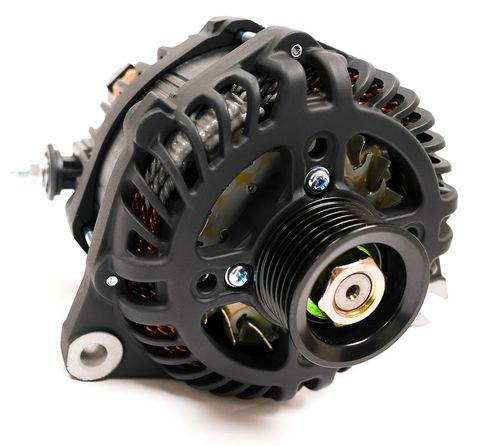

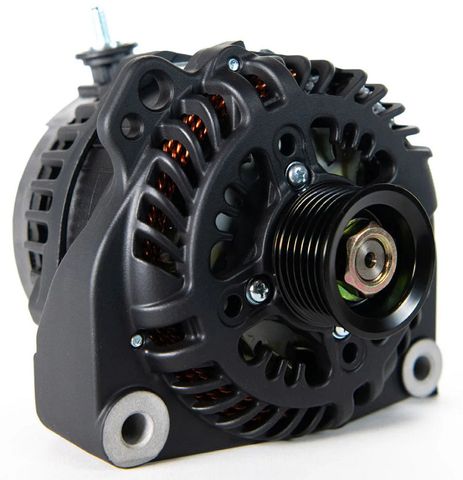

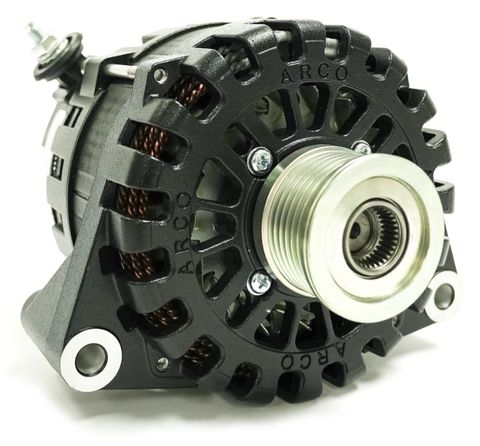

The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps) 2,500 RPM, and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!

Instead of using rotors designed for 48 volts, many competitor’s alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitor’s 48V alternators, having a direct impact on the alternator’s lifespan.

Features:

Replace your noisy generator!
Engineered for high energy production.
Suitable for marine, RV, military, and commercial applications.
Rapidly charges large battery banks.
Coolest operating temperatures for increased performance:
Heat shedding coatings
Rectifier located on housing exterior
Dual cooling fans
OEM components
Optimized for performance at idle speeds.
Reduces the need for a generator by creating additional power with your engine.
Unleash peak performance with E-Coat, keeping the high amp alternator cooler for sustained amperage output.
For maximum performance or lithium battery charging, use the Arco Zeus Bluetooth Alernator Regulator.



Code Image Product Details Enquire
4601
Arco Zeus 48V 225A High Output Alternator
DF315 Mount,Side Post,External Regulator,isolated
Make an Enquiry
4603
Arco Zeus 48V 225A High Output Alternator
DF4 Mount ,Side Post,External Regulator, isolated
Make an Enquiry
4604
Arco Zeus 48V 225A High Output Alternator
N62 Mount,Side Post,External regulator
Make an Enquiry
4605
Arco Zeus 48V 225A High Output Alternator
SF12 Mount,Side Post,External Regulator,Isolated
Make an Enquiry
4606
Arco Zeus 48V 225A High Output Alternator
VT Mount Side Post,External Regulator
Make an Enquiry
4607
Arco Zeus 48V 225A High Output Alternator
TR Mount,Side Post External Regulatot
Make an Enquiry
4609
Arco Zeus 48V 225A High Output Alternator
VT Mount,Side Post,External Regulator,Isolated
Make an Enquiry
