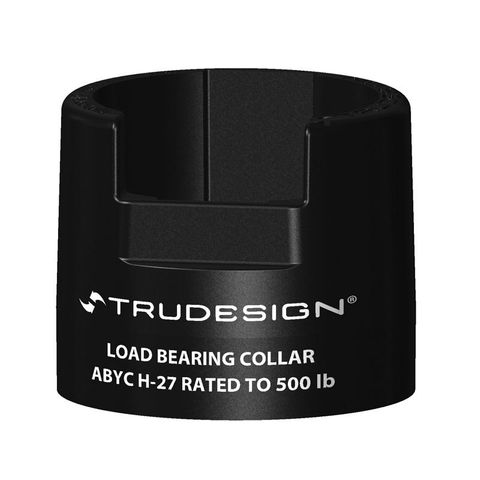

TruDesign Load Bearing Collars are designed for use with TruDesign Skin Fittings and Ball Valves. With the Collar in place, the Skin Fitting-Ball Valve-Hose Tail assembly will withstand a 500 lb (227 kg) static force applied to the Hose Tail end of the assembly, for a minimum of 30 seconds – complying with North American ABYC H-27 standards. Note: TruDesign 1 1/4", 1 1/2" 2" Skin Fittings meet the requirements of H-27 500Lb standard (i.e. without a Large Collar installed). Adding a Large Collar to assemblies of this size increases the overall strength and protects the vulnerable exposed section of thread on the Skin Fitting.

  • American ABYC H-27 – 500Lb static load test - TRUDESIGN Skin Fittings and Ball Valves meet the American ABYC H-27 – 500Lb static load test; Seacocks, Thru-Hull Fittings, and Drain Plugs – independently verified by IMANNA Laboratory Inc.
  • For sizes 1¼” through to 3” the ABYC Collar it is not a requirement to meet this static load test.
  • TruDesign ABYC Load Bearing Collar is required for the size ¾ and 1” to meet this static load test.
  • The ½” does not meet the 500Lb static load test with or without the ABYC collar
  • Compact footprint
  • No additional bolts or fasteners through or on to the hull
  • Ability to retrofit to existing TruDesign assemblies
  • Compatible with all hull types across a wide range of hull thicknesses – download product info sheet above Shrouded protection
  • Fool-proof assembly - if not snug when tightened the Skin Fitting's length will need shortening. See info sheet.
  • Manufactured from a glass reinforced nylon composite
  • Immune to corrosion and electrolysis

Code Image Product Details Enquire
90856
Load Bearing Collars
Load Bearing Collar - Small
Make an Enquiry
90857
Load Bearing Collars
Load Bearing Collar - Medium
Make an Enquiry
90920
Load Bearing Collars
Load Bearing Collar - Large
Make an Enquiry
91327
Load Bearing Collars
Load Bearing Collar - 3"
Make an Enquiry
