Trudesign 90 Degree Hose Tail - Female

Trudesign 90 Degree Hose Tail - Female

HTML Editor - Full Version

TruDesign composite fittings are moulded from a glass-reinforced nylon composite. High strength, high-modulus glass fibres impregnated into the nylon provide dramatic strength, stiffness, toughness, and dimensional stability. TruDesign fittings eliminate the corrosion and electrical bonding problems associated with metallic fittings. Tails (Hose barbs) are designed for twin hose clamps and to not crush under high load conditions.

  • Parallel BSP or NPS threads - Universal compatibility with TruDesign fittings, and other common marine components
  • For above the water line only when directly fitted to a Skin Fitting / Thru Hull. In below water line situations - ISO & ABYC require a TruDesign Ball Valve to be fitted directly to a Skin Fittings / Thru Hulls.
  • Please view Technical Information document below for important Thread Sealing and Installation details.

Code Image Product Details Enquire

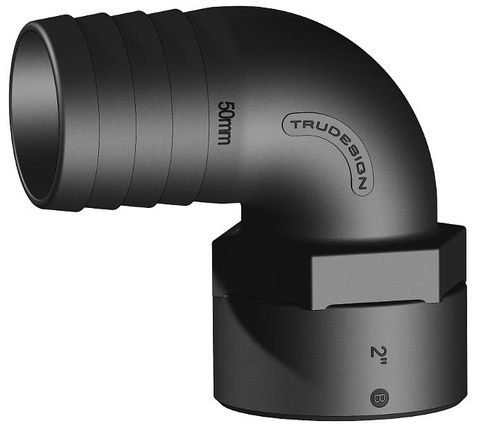

90627
Trudesign 90 Degree Hose Tail - Female
Hose Tail 90Deg 50mm x 2" BSPF
Make an Enquiry

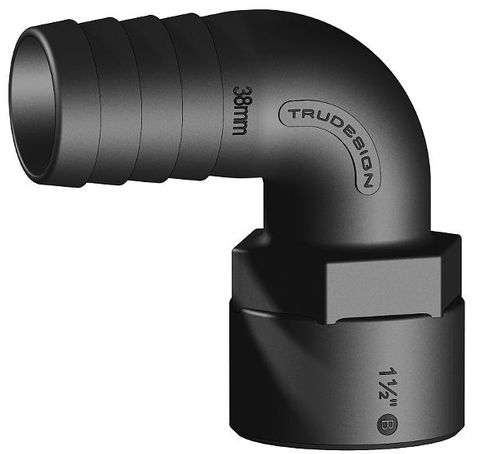

90629
Trudesign 90 Degree Hose Tail - Female
Hose Tail 90Deg 38mm x 1-1/2" BSPF
Make an Enquiry

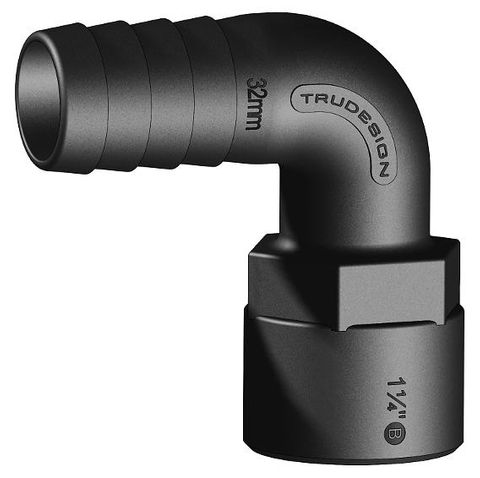

90631
Trudesign 90 Degree Hose Tail - Female
Hose Tail 90Deg 32mm x 1-1/4" BSPF
Make an Enquiry
90773
Trudesign 90 Degree Hose Tail - Female
Hose Tail 90Deg 19mm x 3/4" BSPF
Make an Enquiry

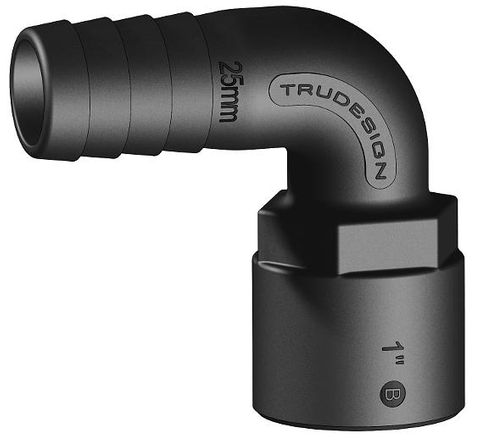

90775
Trudesign 90 Degree Hose Tail - Female
Hose Tail 90Deg 25mm x 1" BSPF
Make an Enquiry
