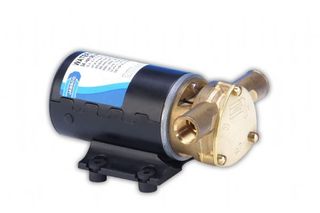

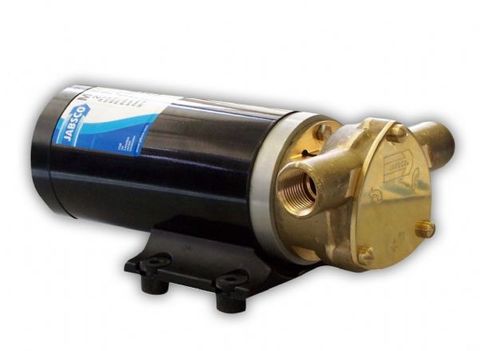

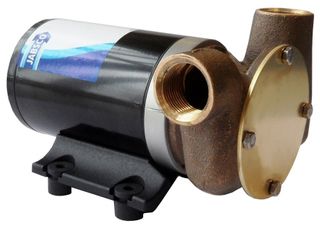

Jabsco Maxi Puppy Continuous-Rated Bilge Pump
The Jabsco Maxi Puppy is a bronze flexible impeller pump with a nitrile impeller, 1/2" BSP thread and 1" ID hose ports, coupled to a 12 or 24 Volt DC Motor. This pump is a continuously rated, high-flow, high-pressure, heavy-duty pump for general-purpose use, or as a bilge pump offering good discharge head. It is built to last with a bronze pump head and an oil-resistant nitrile impeller.
This pump has a nominal flow rate of 720 GPH (2725 LPH) / 11 GPM (44 LPM) and is self-priming from dry up to 2.4m (8 feet) and a lift to 6m (20 feet) when primed. Be sure suction lines are airtight or pump will not self-prime. The temperature limits for the nitrile impeller in this pump is 7°C to 82°C (45°F to 180°F)
This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components.
Do not this Jabsco pump for petrol, petroleum products or any products with a flash point below 37°C.
Connections: - for 25mm (1”) bore hose or 1/2" BSP

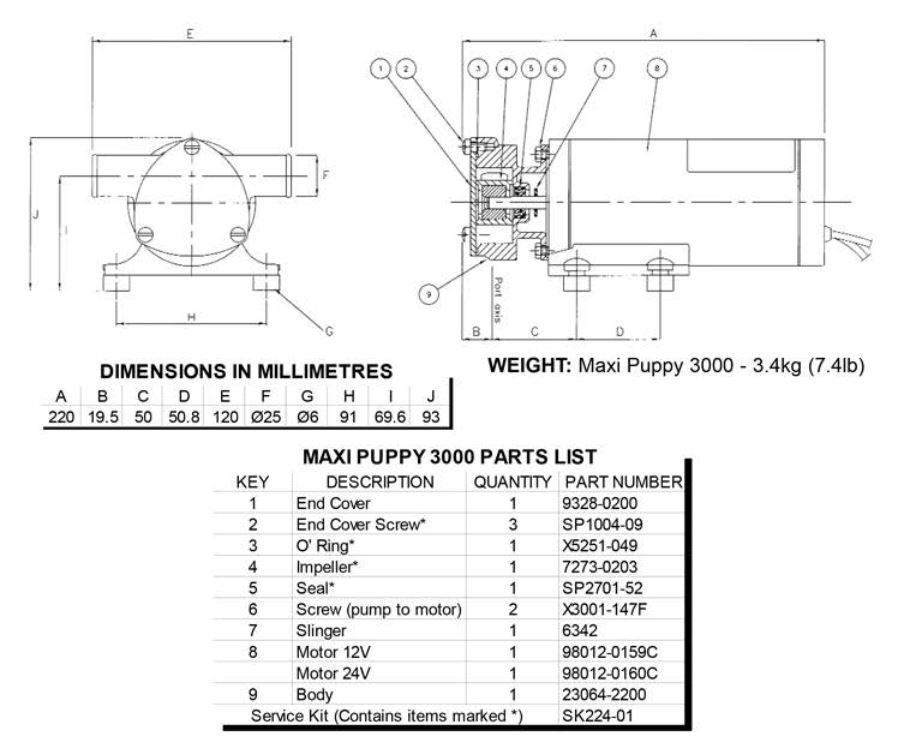

Dimensions: - 220mm long, 120mm wide, 85mm high
Fuse Size:
- 12V: 25(amp)
- 24V: 15(amp)
Output: - up to 45 litres/minute (10 gallons/minute).
High capacity, continuously rated bilge pump
Self priming up to 2.4m vertical lift
Simple, fully serviceable design with few wearing parts
Can generate pressures up to 1 bar (15 psi)
Bronze body, stainless steel shaft
Packaged Dimensions: L:28.00 x H:13.00 x W:15.00cm
Actual Weight: 3.85 Kg (Approx. 4.35 Kg packed)
