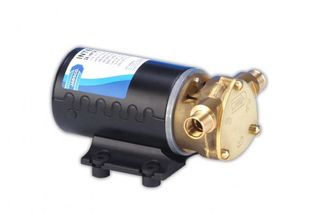

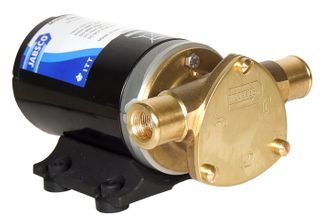

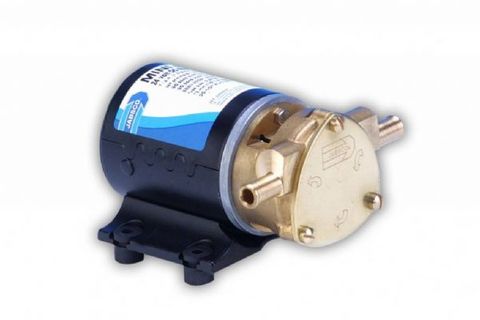

Jabsco Mini Puppy Continuous-Rated Bilge Pump

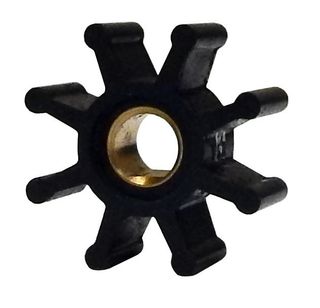

The Jabsco Mini Puppy is a bronze flexible impeller pump with a nitrile impeller, lip type seal, coupled to a 12 or 24 Volt DC Motor. These are continuous rated, medium duty pumps for bilge and general-purpose use.
Small bilge debris present no problem to these brass bodied, flexible impeller pumps.
Simple design means fewer wearing parts.
Up to 7.4 LPM output at 2m head. Self-priming to 1.5m.
Connections: - for 12.5mm (½”) bore hose.
Dimensions: - 165mm long, 84mm wide, 83mm high
Fuse Size:
- 12V: 10(amp)
- 24V: 5(amp)
Output: - up to 7.4 litres/minute (1.63 gallons/minute).
Light duty continuously rated bilge and deck wash pump
Self priming up to 1.5m vertical lift
Simple, fully serviceable design with few wearing parts
Can generate pressures up to 2 bar (30 psi)
Bronze body, stainless steel shaft
Packaged Dimensions: L:24.00 x H:11.00 x W:13.00cm
Actual Weight:
- 12V: 2.48 Kg (Approx. 2.98 Kg packed)
- 24V: 2.46 Kg (Approx. 2.96 Kg packed)
