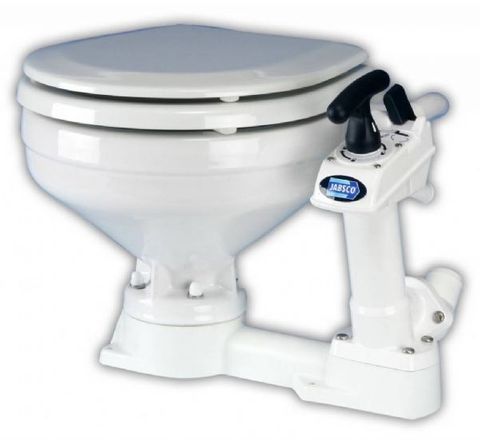

Jabsco Manual Toilet 29090/29120 Series

Jabsco Manual Toilet 29090/29120 Series

Model No.: 29090 and 29120

Twist 'n' Lock safety handle and flush control lever.

Powerful swirl action for efficient flushing.

Full sized external seal housing allows quick clean seal replacement and instant access to pump cylinder.

Powerful self-priming pump for above or below waterline installation.

Crevice free contours and smooth mouldings for added hygiene.

Automatic vacuum breaker for easier pumping.

Angled pump housing and long stroke for more comfortable operation.

Code Image Product Details Enquire
29090-5000
Jabsco Manual Toilet 29090/29120 Series
Twist n' Lock Compact Bowl Manual Toilet
Make an Enquiry
29120-5000
Jabsco Manual Toilet 29090/29120 Series
Twist n' Lock Regular Bowl Manual Toilet
Make an Enquiry

Connections: - for 19mm (¾”) bore inlet hose, 38mm (1½”) bore discharge hose

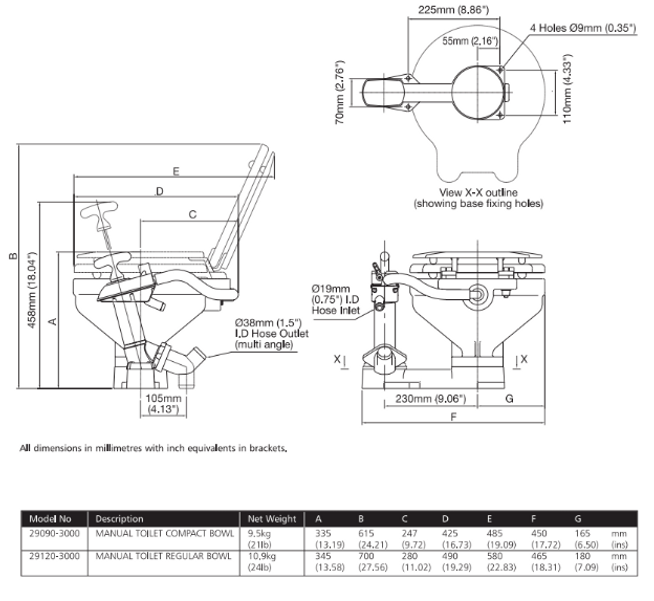

Dimensions:

  • Regular Bowl: - 470mm wide, 485mm deep, 345mm high
  • Compact Bowl: - 455mm wide, 425mm deep, 345mm high

White vitreous china bowl, enameled wooden seat and cover

Reversible pump mounting for left or right-handed installation

Crevice-free contours and smooth moldings for added hygiene

Multi-angled discharge elbow for ease of installation

Corrosion-resistant materials for fresh or salt water service

All fastenings face front or top for ease of maintenance

Packaged Dimensions:

  • Regular Bowl: L:60 x H:55 x W:54cm
  • Compact bowl: L:54 x H:50 x W:54cm

Actual Weight:

  • Regular bowl: 13 Kg  (Approx. 14.00 Kg packed)
  • Compact Bowl: 10.80 Kg  (Approx. 11.80 Kg packed)
