Hella Pilot Lamp

Hella Pilot Lamp

HTML Editor - Full Version

Hella Marine pilot lamp.

Code Image Product Details Enquire
2AA 905 300-002
Hella Pilot Lamp
Pilot Lamp, Red - 12V Non-Replaceable Lamp
Make an Enquiry
2AA 905 300-012
Hella Pilot Lamp
Pilot Lamp, Green - 12 Volt
Make an Enquiry
2AA 905 300-032
Hella Pilot Lamp
Pilot Lamp, Amber - 12 Volt
Make an Enquiry
2AA 910 233-042
Hella Pilot Lamp
LED Pilot Lamp, Red - 12V
Make an Enquiry
2AA 980 308-001
Hella Pilot Lamp

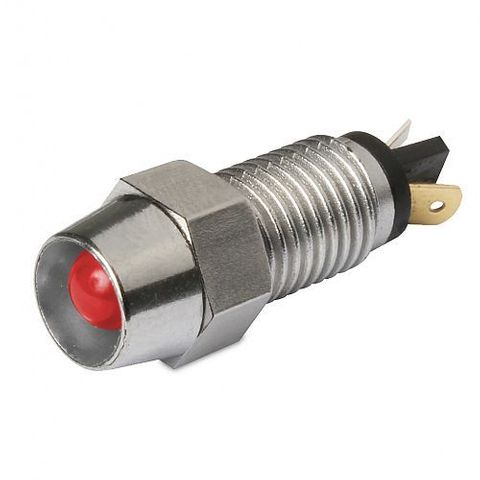

LED Pilot Lamp, Red with Chrome Body - 12V
Make an Enquiry

Mounting:

  • Pilot Lamp: 12.5mm diameter opening
  • LED Pilo Lamp: 22mm diameter opening
  • LED Pilo Lamp (Chrome): 8mm diameter opening

For Panels:

  • Pilot Lamp:
  • LED Pilo Lamp: Up to 38mm thick
  • LED Pilo Lamp (Chrome): Up to 10mm thick

Voltage:

  • Pilot Lamp: 12V
  • LED Pilot Lamp: 12V or 24V AC/DC
  • LED Pilot Lamp (Chrome): 12V

Function:

  • Red: Ignition, handbrake and hazard warning lamps
  • Green: Indicator lamps
  • Blue: Main beam and auxiliary headlamps
  • Amber: Fog lamps



NOTE:

  • Both Pilot Lamp & LED Pilot Lamp (Chrome): Suitable for 12V only.
  • Pilot Lamp: Bulb not replaceable
  • LED Pilot Lamp (Chrome): LED included, not replaceable.

PILOT LAMP





LED PILOT LAMP



LED PILOT LAMP (Chrome Body)



All Dimension in mm.
