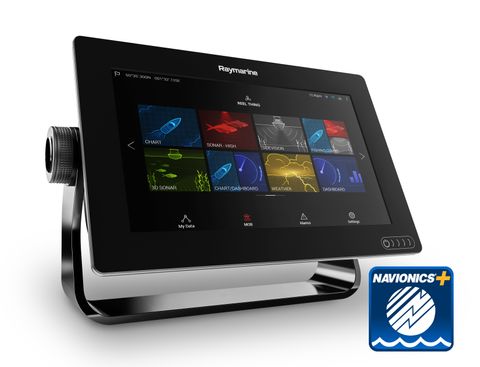

Raymarine Axiom 9 RV with RealVision 3D Sonar
Introducing Axiom—a powerful multi-function navigation system from Raymarine. The Axiom RV MFD features a rugged all-glass touchscreen display and is powered by Raymarine’s powerful new LightHouse 3 operating system and a supercharged quad-core processor.
Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
Built-in RealVision 3D sonar: Axiom RV has built-in dual channel RealVision 3D sonar for imaging bottom structure and fish.
Key Features
- Rugged all-glass display optimized for flush or surface mounting. Sleek buttonless design with swipe-to-power control. Optically bonded for brighter colours, sharper contrast, and sunlight visibility
- New LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating.
- Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting– hands down!

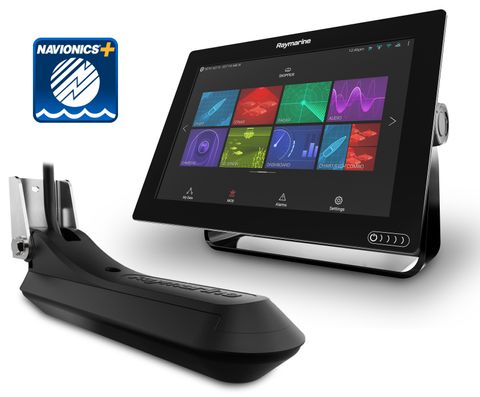

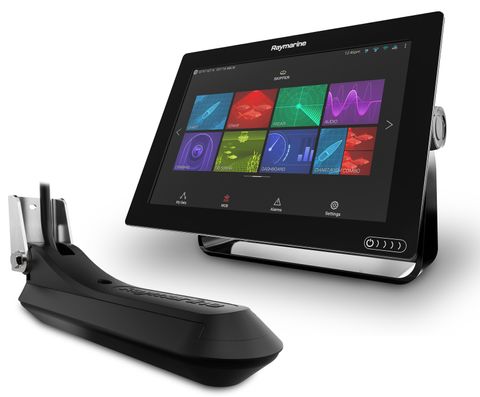

- RealVision 3D Transducer combines CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D into a single transducer housing
- Fast 10Hz 72-channel GPS/GLONASS receiver for rapid position and heading updates and smooth on-screen tracking.
- Support for the best charts from Navionics, LightHouse Raster and C-MAP
- Navigate safely at night with the optional FLIR M100 and M200 compact marine thermal cameras.
- Quantum CHIRP Radar ready – Superior solid-state CHIRP radar delivers no compromise performance on long and extremely short ranges.
- Marine audio control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate.
- Ready to network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more.
- Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom’s waypoints, routes, and charts with Navionics mobile apps.
