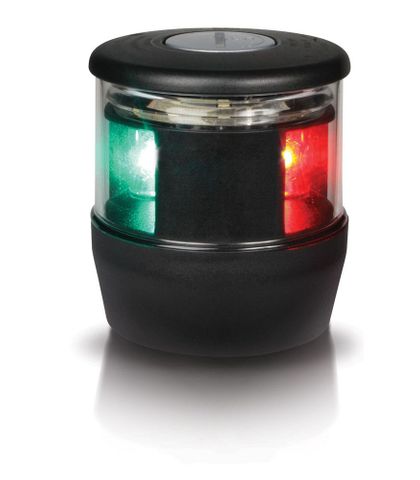

Hella Marine 2 NM NaviLED TRIO Tri Colour Navigation Lamp
Hella 2NM NaviLED TRIO Tri Colour with Anchor navigation lamp uses
advanced materials and state of the art technology for reliability, efficiency and safety at sea.
Ultra low current draw. Power saving on board, Port, Starboard and Stern draws less than 3.5W.
Fully sealed for life. IP 67 Certified. Completely sealed, impervious to saltwater and contaminants.
Safe and highly visible Hella marine lens and optics technology ensures ultra precise horizontal and vertical cut-off angles, clearly indicating a vessel’s movement and heading.
Ultra durable materials. Ultra long service life. Advanced heavy duty Grilamid lens and housing, plus proven Hella marine LED technology combines to provide outstanding resistance to vibration, impact and shock loads. Relentless test programs have helped lift product reliability to new standards for ongoing performance and safety in the most demanding conditions.

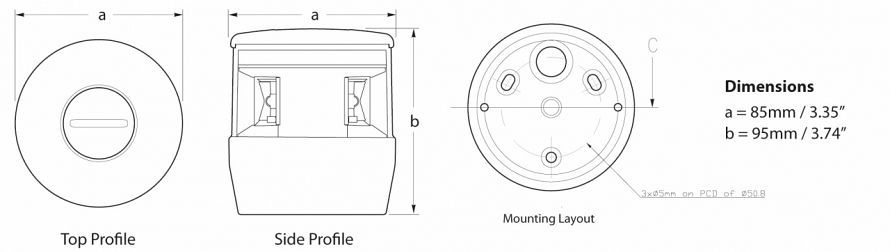

Unique installation and removal system the NaviLED Trio installs on a unique 316 stainless steel mounting shaft for a secure attachment and reliable electrical connections.
Multi voltage 12/24V
Hella marine LED navigation lamps are expertly designed and precision manufactured in New Zealand and this NAVILED MASTHEAD TRICOLOUR LIGHT is backed by a 7-year warranty for complete peace of mind.
Material Description: UV resistant, high impact nylon
Lens Material: UV resistant, ultra heavy duty Grilamid lens
Mounting Shaft: 316 stainless steel
Minimum Visible Distance: 2 Nautical Miles (Yacht)
Cable: Pre-wired with 400mm of triple core marine cable
Operating Voltage: Multivolt 9-33V DC (early version 8-28V DC)
Voltage Protection: Spike protected to +500 volts Reverse polarity protected to -700 volts
Power Consumption: Port, Starboard and Stern - Less than 3.5W combined All Round White / Anchor - Less than 1.5W
Degree of Protection: IP 67 - Completely Sealed
Weight: 400g (including cable)
Approvals: BSH, IMO Col Reg 72, USCG, ABYC A-16, Maritime NZ
