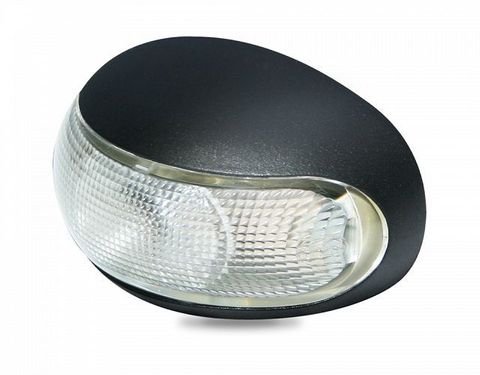

Hella Marine Trailer Side Marker LED
Hella marine LED Side Marker Trailer Lamps are the highly visable, maintenance free solution for reliable and safe boat trailer lighting. Designed and manufactured in New Zealand, each is a completely sealed, IP67, maintenance free unit. They are also shock, vibration, UV and corrosion resistant and represent true ‘fit and forget’ technology.
Multivolt electronics reduce the effect of voltage drop, ensuring ongoing safety. This means Hella LED lamps perform at full brightness across a range of voltages unaffected by voltage drop that can dull bulb lamps due to long cable runs, joins, terminals and plugs in a boat trailer’s wiring. DuraLED Lifetime Warranty.
Hella Marine DuraLED Front End Outline Lamp Instruction Sheet
Hella Marine DuraLED Front Position/End Outline Lamp Instruction Sheet
Hella Marine DuraLED Side Marker Lamp Instruction Sheet
Optics: Optic appears clear until illuminated
Mounting: Surface mount. Suitable for horizontal mounting.
Light Colour: Amber, White or Red/Amber
Voltage: Multivolt™ for optimum brightness in 12 and 24 volt systems.
Power Consumption: <1W
Protection:
- Reverse polarity protection.
- IP 6K6 (Protection against dust and high pressure water jets)
- IP 6K7 (Protection against dust and temporary water immersion)
Cable Length:
- Pre-wired with 0.5m of sheathed multi-core cable.
- Bulk pack pre-wired with 2.5m of sheathed multi-core cable.
Lens Material: Grilamid®
| Code | Image | Product Details | Enquire |
|---|---|---|---|
|
2PF 959 570-391
|
|
DuraLED Front End Outline Lamp - Amber
|
|
|
2PF 959 570-502
|
|
DuraLED Front Position/End Outline Lamp - White
|
|
|
2PS 959 660-581
|
|

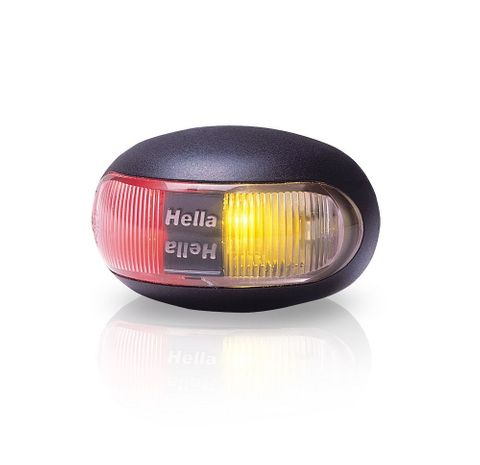

DuraLED Side Marker Lamp - Red/Amber
|
|
