Hella Beacon
REVOLVING BEACON KL 700
Power Consumption:
- 12V : 55W
- 24V : 70W
Rotation: 160rpm
RF Suppression: VDE 0879, Class 3, FM 5.
Bulbs to Suit:
- 12V : C1255
- 24V : C2470
Protection:
- IP 5K4K (Protection against dust and water splashing with increased pressure)
- IP X9K (Protection against high-pressure/steam jet cleaning)

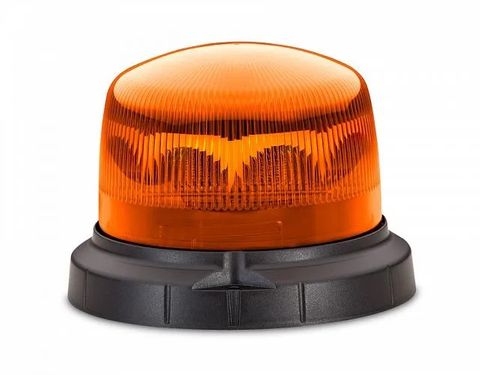

K-LED 2 BEACON
Mounting: Fixed mounting on horizontal surfaces.
Voltage: Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.
Power Consumption: 30W max.
Protection:
- Reverse polarity and Transient Spike Circuit protection.
- IP 6K7 (Protection against dust and temporary water immersion)
Flash Rate: Simulated rotation 120rpm (2.00Hz)

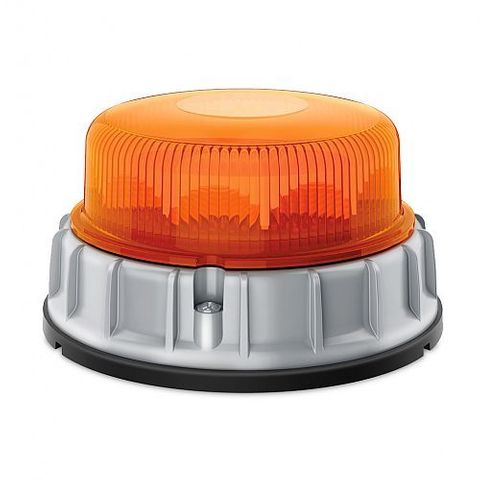

RotaLED Beacon
Mounting: Fixed mounting on horizontal surfaces.
Voltage: Multivolt™ for optimum brightness at input voltages from 10 to 30 volts.
Power Consumption: 10W
Protection:
- Reverse polarity and Transient Spike Circuit protection.
- IP 6K7 (Protection against dust and temporary water immersion)
- IP X9K (Protection against high-pressure cleaner, specific for road vehicles)
Flash Rate: 124 +/- 10 per minute, double flash
Cable: Pre-wired with 150mm Cable
RF Suppression: CISPR25 Class 5
Compliance: ECE R65/00 TA1 ECE R10 SAE J845 Class 2
REVOLVING BEACON KL 700
K-LED 2 BEACON
RotaLED Beacon
| Code | Image | Product Details | Enquire |
|---|---|---|---|
|
2RL 905 143-001
|
|
Revolving Beacon KL 700 - Amber - 12V
|
|
|
2XD 011 557-101
|
|
K-LED 2 Beacon 12V - Magnetic Mount - Amber
|
|
|
2XD 013 979-001
|
|
RotaLED Compact Fixed Mount Flashing Beacon
|
|
