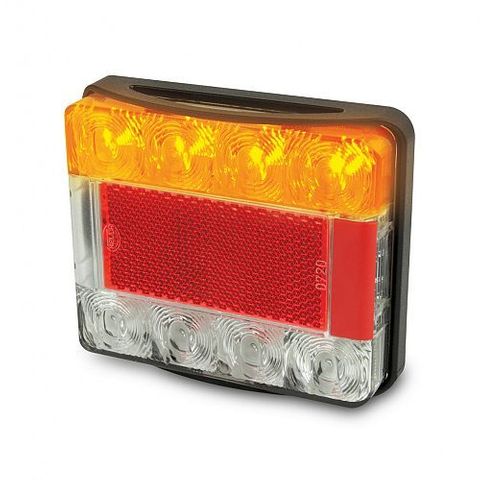

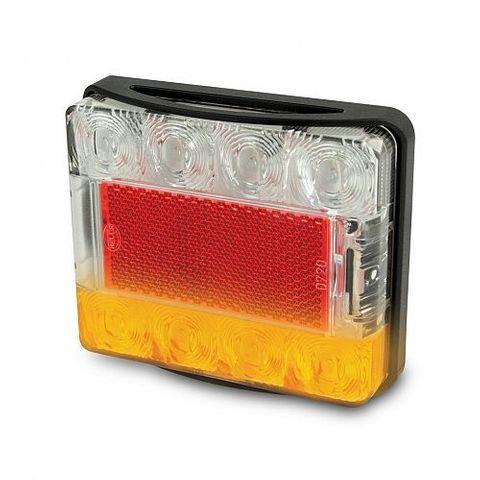

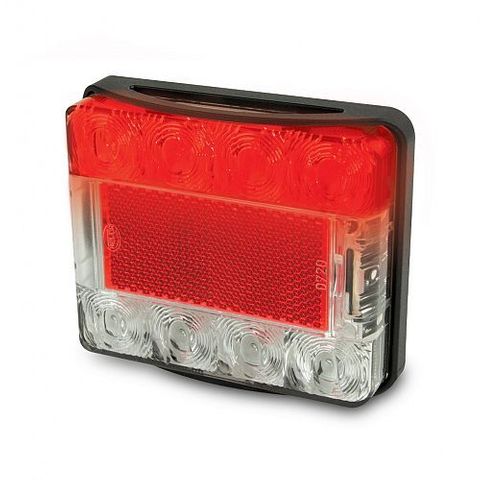

Hella Marine Square Compact LED Combination Lamps
Hella marine LED Trailer Lamps are the highly visible, maintenance free solution for reliable and safe boat trailer lighting. Submersible 2394 and 2395 series lamps feature a modern clear lens with black mounting base. The full combination of functions are offered including LED stop, rear position and rear indicator lamps, number plate illumination plus and an integrated 18cm² red retro reflector.
Low power consumption and long life equates to economical running costs. The mounting base has multiple fixing points and allows time saving and convenient installations onto most boat trailers. Each lamp is completely sealed against dust and moisture ingress. Optic appears clear until illuminated.
80mm wide X 96mm high LED Stop / Rear Position / Rear Direction Indicator Lamp. Installation via mounting bracket and clicking in the lamp.
Hella marine trailer lamps offer class-leading energy efficiency, unmatched durability and are supported with a 5-year warranty for a total ‘fit and forget’ solution and complete peace of mind.
Hella Marine Square Compact LED Combination Lamp (2394) Instruction Sheet
Hella Marine Square Compact LED Combination Lamp (2395) Instruction Sheet
Mounting: Horizontal or vertical
Operating Voltage: Suitable for 12 volt and 24 volt systems
Power Consumption: Rear position 1W, Indicator 2W, Stop 2W
Voltage Protection: Spike, Over Voltage and Reverse Polarity
Cable: Pre-wired with 0.5m or 6.0m
Approvals: ADR or ECE compliant versions
| Code | Image | Product Details | Enquire |
|---|---|---|---|
|
2VA 980 720-021
|
|
Rear/Stop/Indicator, 6m prewired Cable
|
|
|
2VA 980 720-027
|
|
Rear/Stop/Indicator, 6m Prewired Cable Bulk Packed
|
|
|
2VA 980 720-071
|
|
Rear/Stop/Indicator, 0.5m Prewired Cable
|
|
|
2VA 980 720-077
|
|
Rear/Stop/Indicator, 0.5m Prewired Cable Bulk Packed
|
|
|
2VB 980 720-511
|
|
Rear/Stop/Indicator/Number Plate, 6m prewired Cable
|
|
|
2VB 980 720-513
|
|
Rear/Stop/Indicator/.Number Plate, 6m Prewired Cable
|
|
|
2VB 980 720-561
|
|
Rear Position/Stop/Indicator/Number Plate, 0.5m Prewired Cable
|
|
|
2VB 980 720-567
|
|
Rear/Stop/Indicator/Number Plate, 0.5m Prewired Cable Bulk Packed
|
|
|
2VB 980 720-821
|
|
Lamp Kit Rear/Stop/Indicator/Number Plate, 9m Prewired Cable
|
|
