Hella Marine LED Submersible Rear Combination Lamp

Hella Marine LED Submersible Rear Combination Lamp

Form meets function with this LED combination lamp featuring stop, rear position, and rear direction indicator lamps with a central 64cm² red retro reflector.

Suitable for small/medium trucks, utes, buses, commercial vehicles

Easy Installation
Significantly reduced installation time with all rear marker and signal functions combined in a single lamp with a single five core cable

Better Visibility – More Safety
Distinctive lit up appearance on rear position/stop function increases visibility and awareness

Low power consumption
Ensures lowest cost of ownership for the astute transport operator

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Hella Compatibility Solution HCS
Hella P/N 2391 features HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA 24V HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard.
Note: Lamp is not compatible with 12V HCS units.

Code Image Product Details Enquire
2VP 980 980-001
Hella Marine LED Submersible Rear Combination Lamp
Stop/Rear Position/Rear Direction Indicator/Reversing Lamp

Optics: Indicator and Reverse optics appear clear until illuminated

Mounting

  • Two bolt surface mount with mounting accessories supplied
  • Suitable for horizontal mounting

Voltage: Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

  • Stop: 5W
  • Rear position: <2W
  • Rear direction indicator: 6W
  • Reverse: 5W

Protection:

  • Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
  • IP 6K7     (Protection against dust and temporary water immersion)
  • IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length: Pre-wired with 2.5m of sheathed multi-core cable.

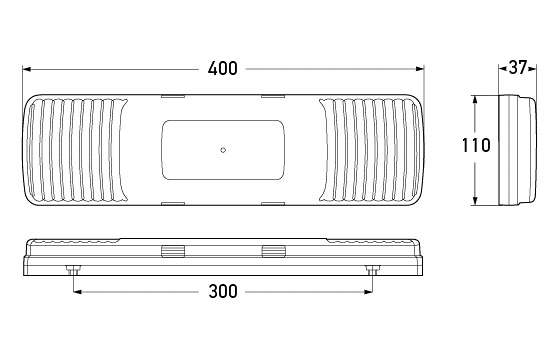

Dimensions in mm.
