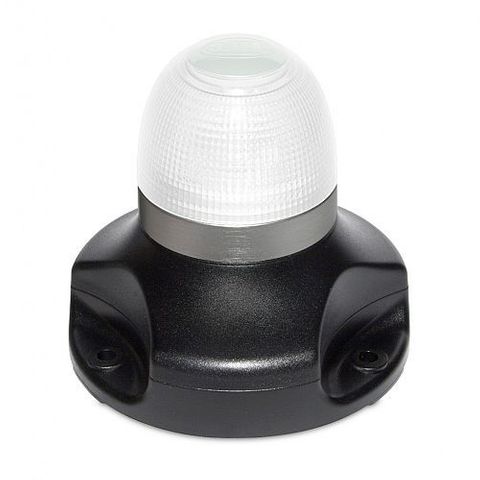

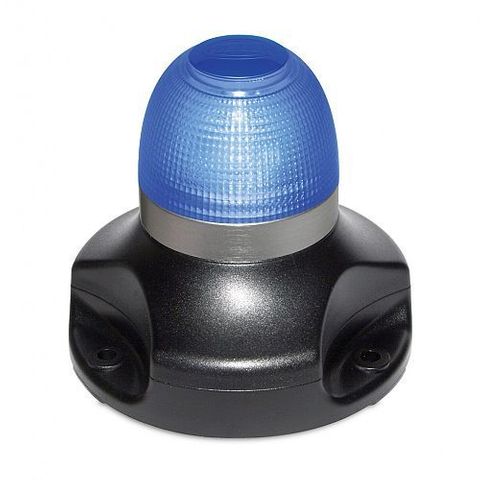

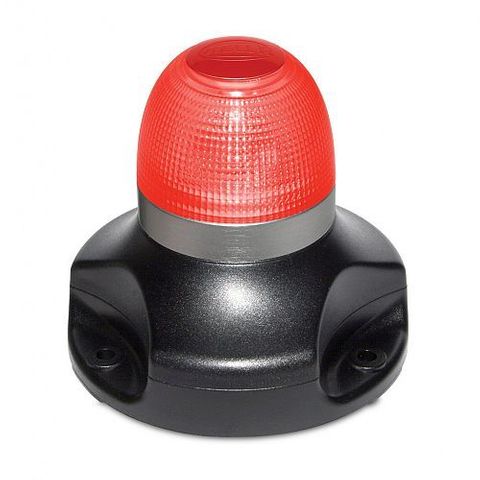

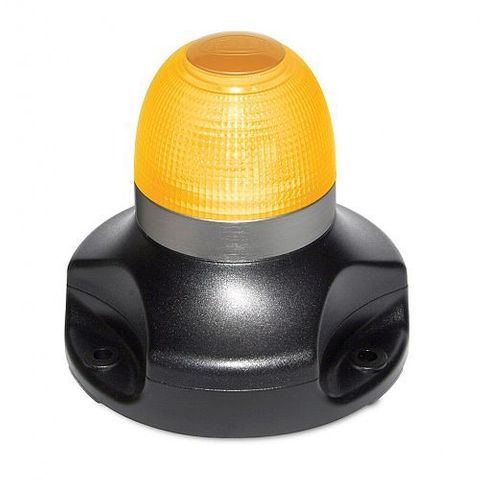

Hella Marine 360° Multi-flash Signal Lamp
Hella 360° Multi-flash Signal Lamp is a multi-purpose signal lamp with robust housing, 10 programmable flash modes and the ability to be synchronised to flash alternately or in unison.
Each lamp is a completely sealed unit. Proven design, precision engineering and the use of high impact acrylic materials ensure superior resistance to water, impact, UV and wear and tear
Advanced MultivoltTM circuitry provides reliable illumination across a range of DC inputs from 9-33 volts even during low battery voltages and voltage drop over long cable runs.
Hella marine LED navigation lamps are expertly designed and precision manufactured in New Zealand and backed by a 5-year warranty for complete peace of mind.
Optics: Optic appears clear until illuminated.
Mounting: Upright mounting with three point mount.
Voltage: Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.
Power Consumption: Less than 5W (less in flashing modes).
Protection:
- Reverse polarity and voltage spike protection.
- IP 67 (Protection against dust and temporary water immersion)
Cable Length: Pre-wired with 2.5m of sheathed multi-core cable.
Lens Material: Grilamid®
Flashing Options:
- Steady state: Lamp operates as a continuous ON signal
- Independent flash: Lamp operates from an external flashing system
- Flash state: Lamp operates in the flash mode preselected by the user
- Blitz state: Lamp operates in a burst of quad flashes (pattern 4)
- The blitz mode overrides the other operating modes and is triggered by switching the blue cable to negative (-).

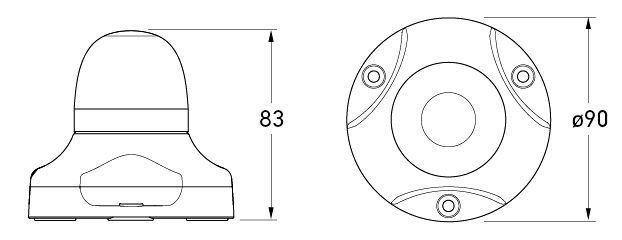

All Dimension in mm.
