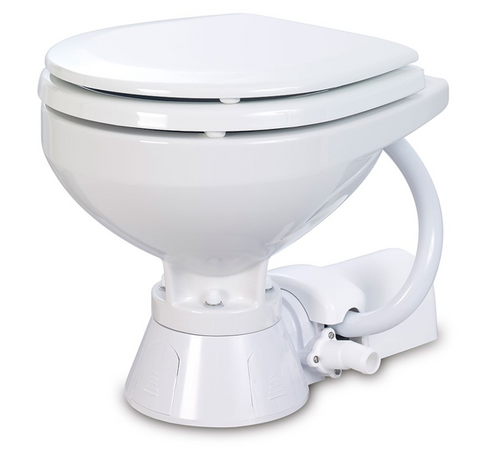

Jabsco Electric Toilet - 37010 Series

Jabsco Electric Toilet - 37010 Series

Electric Marine Toilet with Push Button Operation

Features:

White Vitreous China Bowl, Available in Two Sizes

Compact and Regular (Household Size)

Flexible Impeller Flush Pump

Permanent Magnet Type Motor Fully Enclosed with Stainless Steel Shaft

High Capacity Macerator and Bowl Scavenger Pump

Built-In Back Flow Preventer

Code Image Product Details Enquire
37010-3092
Jabsco Electric Toilet - 37010 Series
Compact Bowl, 12VDC
Make an Enquiry
37010-3094
Jabsco Electric Toilet - 37010 Series
Compact Bowl, 24VDC
Make an Enquiry
37010-4092
Jabsco Electric Toilet - 37010 Series
Regular Bowl, 12VDC
Make an Enquiry
37010-4094
Jabsco Electric Toilet - 37010 Series
Regular Bowl, 24VDC
Make an Enquiry

Connections:  - for 19mm ( ¾”) bore inlet hose, 25mm (1“) bore discharge hose

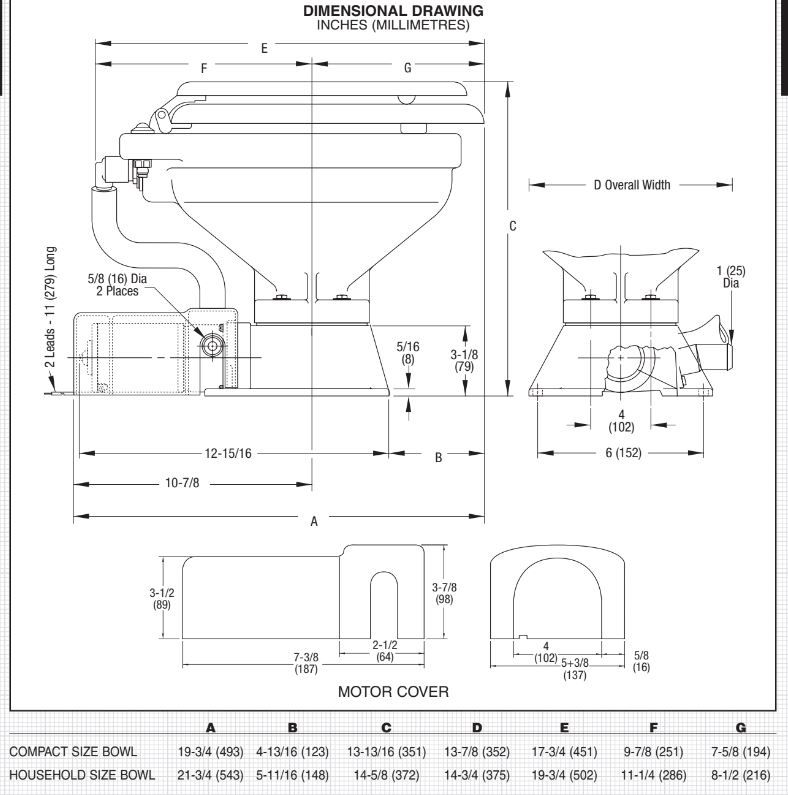

Dimensions:

  • Compact Bowl: - 355mm high, 352mm wide, 451mm deep
  • Regular Bowl: - 365mm high, 375mm wide, 486mm deep

Fuse Size: Compact Bowl & Regular Bowl:  25 or 15(amp)

Maximum Current: Compact Bowl & Regular Bowl: 16 or 8 (amp)

Baked enamel Seat & cover

Flexible Impeller Flush Pump

Packaged Dimensions:

  • Compact Bowl: L:54.00 x H:54.00 x W:50.00cm
  • Regular Bowl: L:60.00 x H:55.00 x W:54.00cm
