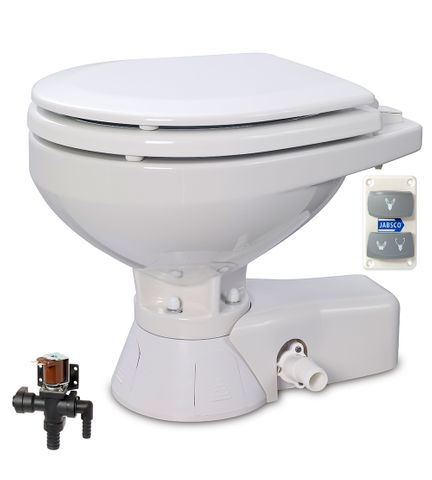

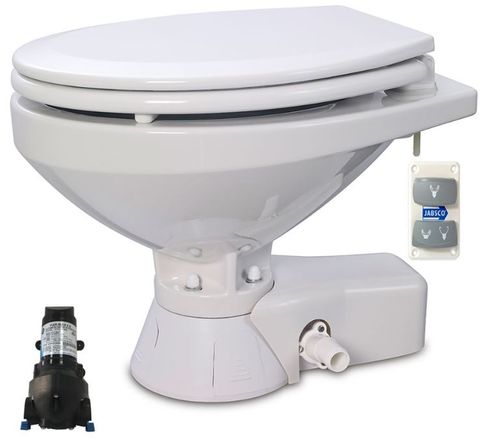

Jabsco Quiet-Flush Electric Toilet

Quiet - Flush Electric Toilet Features:

Very Quiet Flush Cycle - Like A Household Toilet

Single Button Flush Actuator - With Dual Function Water Level Control Switch

Can Be Plumbed to Any Pressurized Water System That Can Provide A 3-1/2 gpm (13.5 lpm) Flow Rate

Water Control Solenoid Valve with Anti-Siphon Breaker to Prevent Contamination Of Potable Water Supply

White Vitreous China Bowl Available in Compact or Comfortable Household Size

Baked Enamel Seat & Cover

High Capacity Waste Macerator and Bowl Discharge Pump

Code	Product Details	Enquire
37045-0094	24VDC, Solenoid Flush, Compact Bowl	Make an Enquiry
37045-3092	12VDC, Solenoid Flush, Compact Bowl	Make an Enquiry
37045-4092	12VDC, Solenoid Flush, Regular Bowl,	Make an Enquiry
37045-4094	24VDC, Solenoid Flush, Regular Bowl	Make an Enquiry
37245-4092	12VDC, Salt Flush, Regular Bowl	Make an Enquiry

Connections: - for 19mm ( ¾”) bore inlet hose, 25mm (1“) bore discharge hose

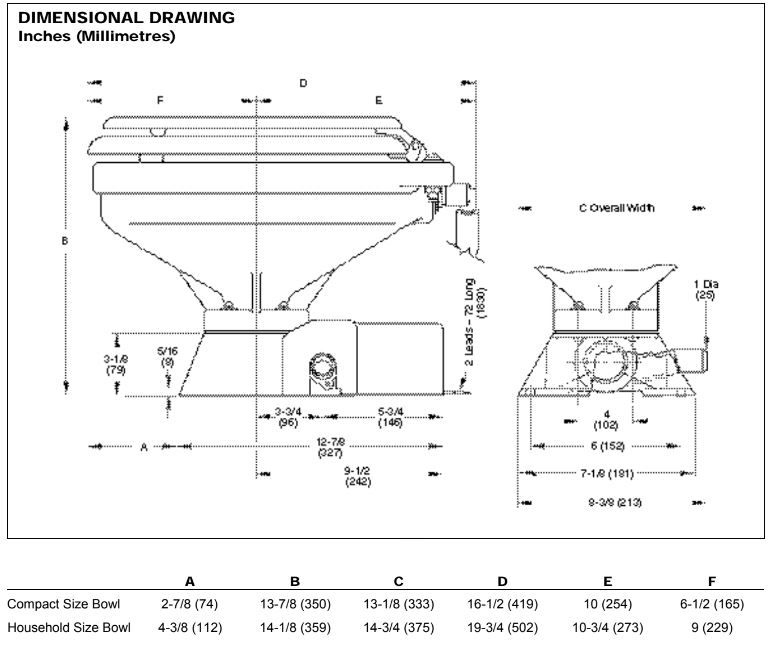

Dimensions:

Fuse Size: - 15(amp)

Low-noise waste discharge pump

Use any remote-mounted automatic pressurised water pump for flushing. Pump must deliver at least 13.5 litres/minute.

Includes solenoid valve to control flushing pump, 1.8m of hose, siphon breaker assembly

Control panel selects normal flush cycle, raises & lowers water level in bowl as required

Packaged Dimensions: L:44.00 x H:42.00 x W:56.00cm

Actual Weight: 15.00 Kg (Approx. 17.00 Kg packed)
