Ultraflex Helm Pump - Rear Mount 25-45cc

Ultraflex Helm Pump - Rear Mount 25-45cc

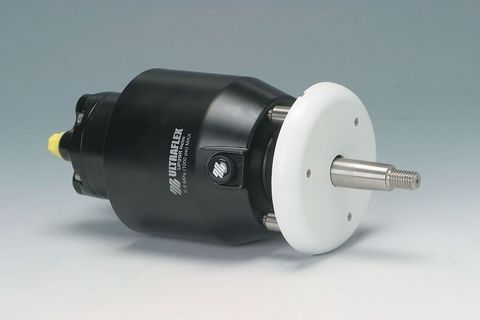

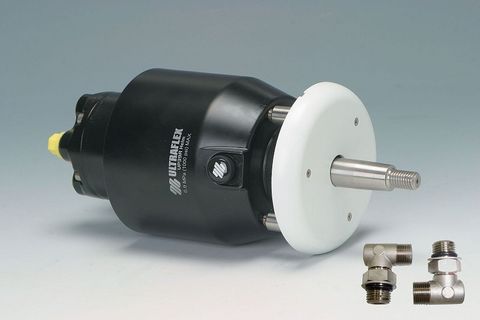

Ultraflex Rear Mount Helm Pump, available in four displacement sizes. Compact design. Ball bearing piston race. Built-in lock valve for positive rudder lock. Integral relief valve for over-pressure protection. 3/4” tapered stainless steel shaft. Easily accessible lock valve and shaft seal for replacement. Cast iron cylinder rotor for greater durability and longer life. White bezel included. Complete with 90° adjustable fittings for 3/8” OD tube and 5/16 ID flexible hydraulic hose, except UP39-I R, UP45-I R pump (straight fitting for 12 mm hose).

Code Image Product Details Enquire
40894Z
Ultraflex Helm Pump - Rear Mount 25-45cc

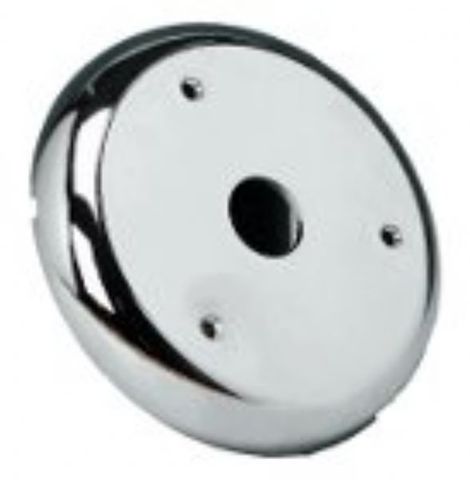

X68 Chrome plated cover ring (bezel) for rear mount helm pump
Make an Enquiry
42454E
Ultraflex Helm Pump - Rear Mount 25-45cc
UP 39R, 39cc, 2.4 cu.in
Make an Enquiry
42457L
Ultraflex Helm Pump - Rear Mount 25-45cc
UP 33R, 33cc, 2.0 cu.in
Make an Enquiry
42460Z
Ultraflex Helm Pump - Rear Mount 25-45cc
UP 28R, 28cc, 1.7 cu.in
Make an Enquiry
42466M
Ultraflex Helm Pump - Rear Mount 25-45cc
UP 45R, 45cc, 2.7 cu.in
Make an Enquiry
42557R
Ultraflex Helm Pump - Rear Mount 25-45cc
UP 39IR, 39cc, 2.4 cu.in, 1/2' ports
Make an Enquiry
