Ultraflex Helm Pump - Tilt Mount 25-45cc

Ultraflex Helm Pump - Tilt Mount 25-45cc

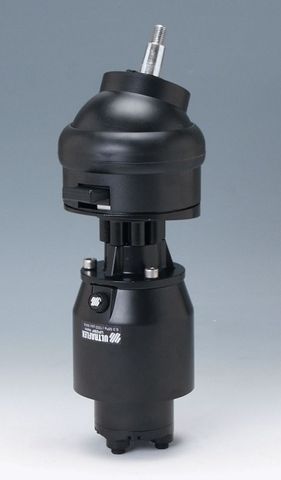

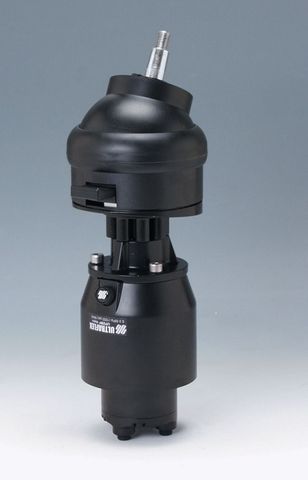

Ultraflex Tilt Mount Helm Pump with X52 tilt mechanism, available in various displacement sizes. Compact design. Ball bearing piston race. Built-in lock valve for positive rudder lock. Integral relief valve for over-pressure protection. Stainless steel shaft. Easily accessible lock valve and shaft seal for replacement. Cast iron cylinder rotor for greater durability and longer life. Complete with 90° adjustable fittings for 3/8” OD tune and 5/16 ID flexible hydraulic hose.

Requires Tilt mechanism: X52 - 39250 U - Tilt range of 48º with five locking positions. ( Not Included)

Code Image Product Details Enquire
42455G
Ultraflex Helm Pump - Tilt Mount 25-45cc
UP 39T, 39cc, 2.4 cu.in
Make an Enquiry
42458N
Ultraflex Helm Pump - Tilt Mount 25-45cc
UP 33T, 33cc, 2.0 cu.in
Make an Enquiry
42464H
Ultraflex Helm Pump - Tilt Mount 25-45cc
UP 25T, 25cc, 1.5 cu.in
Make an Enquiry
42467P
Ultraflex Helm Pump - Tilt Mount 25-45cc
UP 45T, 45cc, 2.7 cu.in
Make an Enquiry

 Ultraflex Helm Pump - Tilt Mount 25-45cc Manual HERE
