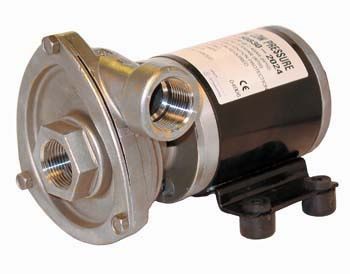

Jabsco Cyclone Centrifugal Pump
The Jabsco 50840-2012 is a cyclone stainless steel centrifugal pump with a 3/4 Inch BSP port, coupled to a 12 Volt DC Motor. This long-life, continuously rated centrifugal pump delivers high flows up to 22 GPM (100 LPM) with a maximum pressure of 8.7 psi (0.6 bar). The combination of reliability, performance, and silent operation is what makes the Cyclone centrifugal pump the class leader and is why these robust pumps are supported by many major customers and OEMs worldwide. The Low-Pressure Cyclone is ideal for hot water circulation duties such as engine cooling and central heating systems. The Cyclone can be mounted on any flat surface. The pump must be installed below the lowest fluid level to maintain flooded suction.
Maximum recommended total head 4m
NOTE: This pump has BSP (British Standard Pipe Thread) Ports.
Do not pump gasoline, petrol or fluids with a flash point below 37°C.
Connections: - ¾”BSP internal threaded ports
Dimensions: - 163mm long, 120mm wide, 122mm high
Fuse Size:
- 12V: 10(amp)
- 24V: 5(amp)
Maximum Current:
- 12V: 7(amp)
- 24V: 3.5(amp)
Output: - 100 litres/minute (22 gallons/minute) @ 0.1m head
High output, continuous rated centrifugal pump
Robust stainless steel body
Can be used with shut-off nozzle
Non-self-priming, requires flooded suction
Maximum recommended total head 4m
Packaged Dimensions: L:24.00 x H:13.00 x W:18.00cm
Actual Weight: 2.98 Kg (Approx. 3.48 Kg packed)
