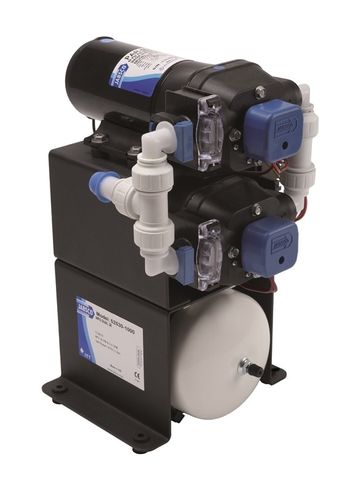

Jabsco Double Stack Water System Pumps with Accumulator

Jabsco Double Stack Water System Pumps with Accumulator

HTML Editor - Full Version

Jabsco Double Stack Water Systems are high flow 34 LPM for up to 7 outlets. Combines two pumps assembled in to a pre-pressurized accumulator tank to smooth flow and prevent pump cycling. Self-priming up to 2-3m.

Run-dry ability. Smooth, even flow. Two stage operation. Internal bladder accumulator tank. Thermal overload protection.

Code Image Product Details Enquire
52530-1000
Jabsco Double Stack Water System Pumps with Accumulator
12VDC
52530-1100
Jabsco Double Stack Water System Pumps with Accumulator
24VDC

Connections: for 19mm (3/4”) hose tail
Shipping weight: 9.5 kg (21 lbs)
Voltage: 12V / 24V
Cut in Pressure: 20Psi
Cut out Pressure: 40Psi
Amp Draw: 16 / 8
Max Fuse Size: 25 / 15
