Raymarine EV-100 Autopilot Systems
Race, Cruise or Fish – Raymarine EV-100 Autopilot Systems will take command.
The culmination of Raymarine’s autopilot expertise and advanced aerospace guidance technology, Evolution Ai™ control algorithms deliver a new level of accurate autopilot control. At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.
An EV-100 system consists of an EV-1 Sensor, ACU-100 Autopilot Control Unit, Drive Unit, Control Head and an Evolution autopilot cabling kit.
EV-100 Sail: The EV-100-wheel pilot comprises a fully enclosed wheel-drive for simple installation and superb autopilot performance for vessels with a max displacement up to 7,500kg.
EV-100 Tiller: The Raymarine EV-100 Tiller Pilots are perfect for large tiller steered yachts up to 6,000kg (13,200 lbs) displacement.
EV-100 Power: Perfect for vessels with single outboard engines and hydraulic steering with a maximum ram capacity of 110cc.
Key Features:
- Automagic™ - No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections
- Easy to install - Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line.
- Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading
- Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster
| Code | Image | Product Details | Enquire |
|---|---|---|---|
|
.T70152
|
|

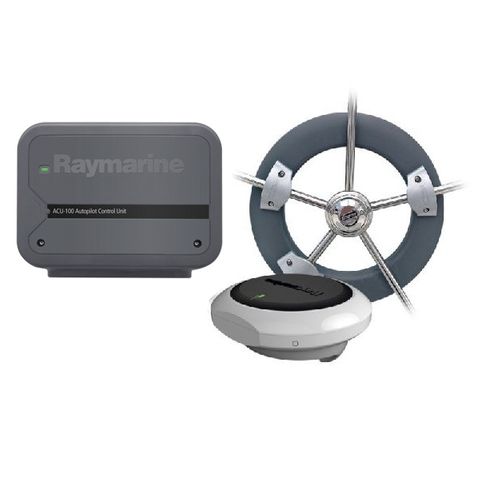

EV-100 - Wheel Pilot with P70S, ACU-100 & Wheel Drive
|
|
|
.T70153
|
|

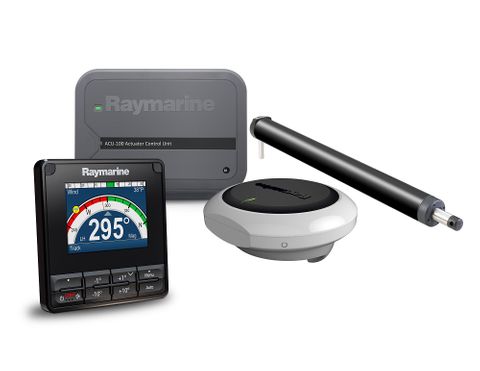

EV-100 - Tiller Pilot with P70S, ACU-100 & Tiller Drive
|
|
|
.T70154
|
|

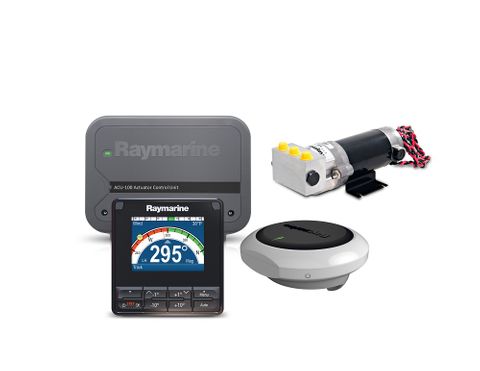

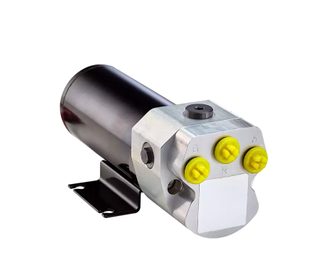

EV-100 - Hydraulic Pilot with P70S, ACU-100 & 0.5L Hydraulic Pump
|
|
|
.T70248
|
|
EV-100 - Wheel Pilot with ACU-100, Wheel Drive & No Controller
|
|
|
.T70249
|
|

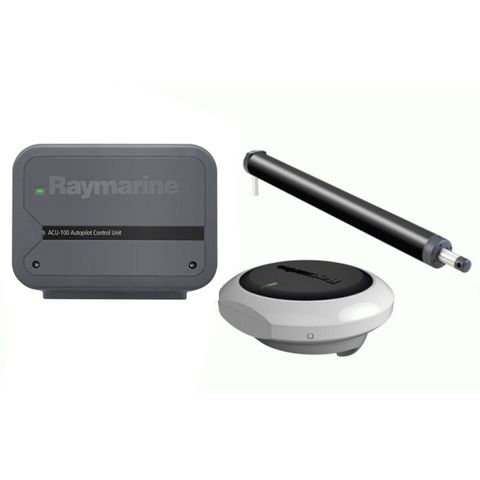

EV-100 - Tiller Pilot with ACU-100, Tiller Drive & No Controller
|
|
