Rule Multi-Port Shower Sump Pump System

Rule Multi-Port Shower Sump Pump System

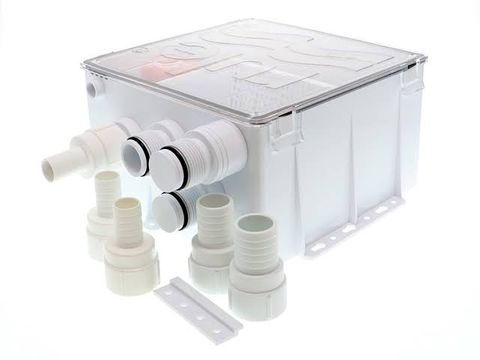

The Rule shower sump pump system is a compact, full capacity shower drain system available in 12 or 24 Volts.  Automatically turns on when the water starts and shuts off when the water is removed, activated by a Rule-A-Matic float switch. Contains Rule 800gph Submersible pump and is ignition protected.  Multi-port inlet.  Straight or 90º Elbow with an Integral non-return valve to prevent back flow.

The Clip in, removable pump, strainer and cover allows easy cleaning and servicing.

Code Image Product Details Enquire
98B
Rule Multi-Port Shower Sump Pump System
12V, 800 GPH
Make an Enquiry
98B-24
Rule Multi-Port Shower Sump Pump System
24V, 800 GPH
Make an Enquiry

Connections: For 19mm (3/4"), 25mm (1") or 29mm (1 1/8") bore hose on inlet and outlet. Straight or 90º Elbow

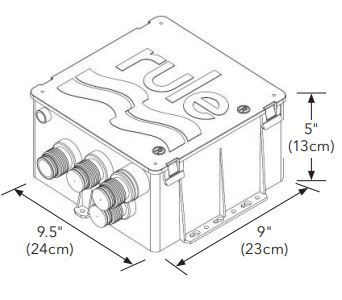

Dimensions: 230mm x 240mm x 130mm high.

Fuse Size: 12V - 5(Amp) / 24V - 4(Amp)

Output: 50LPM (11GPM). Max recommended discharge head 2.5m

Contains Rule 800 Submersible Pump controlled by a Rule-a-Matic float switch.
Clip in, removable pump, strainer and cover allows easy cleaning and servicing.
Sealed clear screw-down cover.
Integral non-return valve.



Packaged Dimensions: L:26.00 x H:14.00 x W:35.00cm

Actual Weight: 1.58 Kg  (Approx. 2.08 Kg packed)
