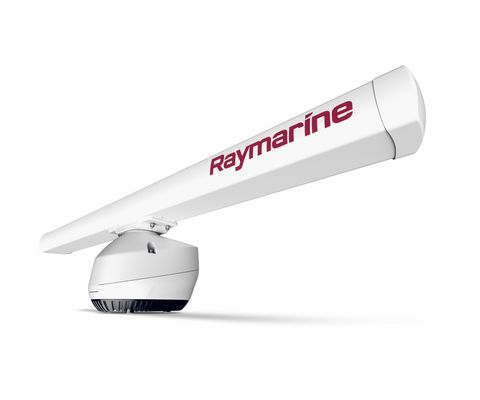

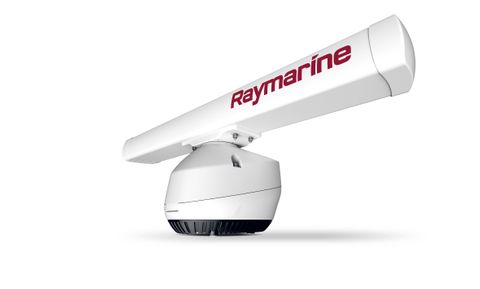

Raymarine Magnum Open Array Radar

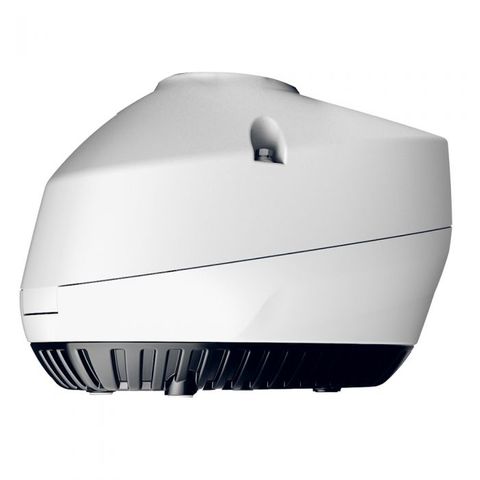

Raymarine’s Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to the Raymarine multifunction navigation displays. Magnum offers enhanced target tracking and reliable performance packaged in a sleek open-array pedestal built to withstand the elements.

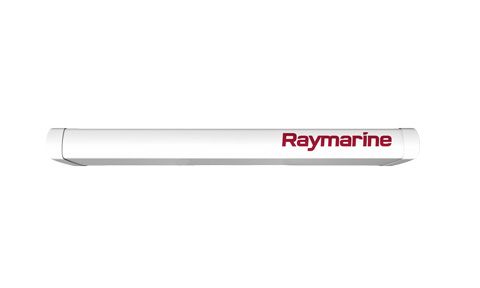

Magnum is available in 4kW or 12kW power output options, and with either a four-foot or six-foot antenna array option. It offers a maximum range up to 96nm for 12kW models – ideal for blue water vessels – and up to 72nm for 4kW models. Superior bird mode targets birds with greater clarity up to 10nm. Locating flocks of birds with Magnum helps anglers find schooling baitfish faster and with less fuel consumption. Enhanced radar imaging delivers better than 1-degree bearing resolution for more detailed target separation, map-like coastal detail, and superior long-range performance.
Better situational awareness with fully automatic MARPA target acquisition and tracking. Making use of Raymarine’s Evolution 9-axis heading sensor technology to deliver real-time, accurate target plots.
The True Trails features enables you to see a historical “wake” behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels and make smart manoeuvring decisions to pass safely.
Real Time Heading updates allow the radar position display to rotate freely as-needed, without the need to refresh the entire display.
