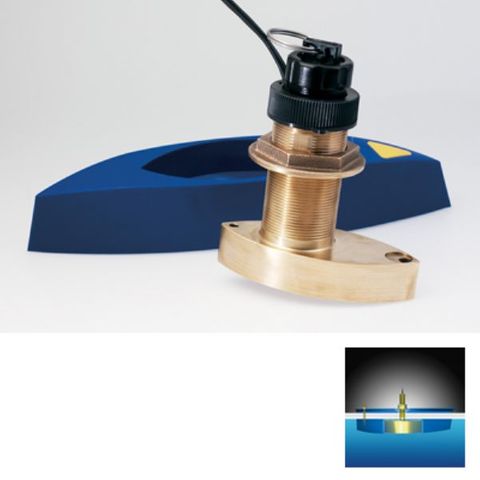

Raymarine B744V 600W Bronze Thru-hull Transducer with Fairing Block
The Raymarine B744V is a TRIDUCER® Multisensor featuring depth, speed and temperature in a single housing. The 50/200 kHz, dual-frequency, single ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz. The B744V is also available with a longer stem (B744VL) that may needed for steep-deadrise vessels or thick, cored hulls.
Features
- Depth, speed, and temperature in one housing
- 600 W
- Dual-frequency elements:
- 50 kHz with a wide 45° beam for performance to 1200' (353m)
- 200 kHz with a 12° beam for performance to 700 (206 m)
- Includes a high-performance fairing for improved bottom tracking at higher speeds
- Patented self-closing sea valve reduces water flow into the hull when paddlewheel insert is removed
- Speed Operating Range: 1 knot to 45 knots (1 MPH to 52 MPH)
- Fins on sides of paddlewheel cavity provide improved accuracy in cross flow conditions
- Recommended boat size: Up to 30' (9m)
Style: Thru-Hull
Cable Length: 33' (10m)
Monitors: Depth/speed/temperature
Material: Bronze housing, Urethane acoustic window
Compatible Hull Material: Fibreglass & Wood
Transmit Power: 600W
Frequency: 50/200kHz
Depth:
- 50kHz: 1,200'
- 200kHz: 700'
Beam width:
- 50kHz: 45°
- 200kHz: 12°
NOTE: Self-sealing removable paddle wheel insert. Comes with a high speed fairing block. The extra length of the B744VL allows mounting into thicker and/or high deadrise hulls.
