Raymarine B765 600W CHIRP Bronze Thru-Hull Transducer with Fairing Block
The Raymarine B765 provides the performance of the larger CHIRP Transducers but in a compact package for smaller boats. A great combination of low/high or low/medium frequency bands provides a wide range of depth capability and fish finding. The low frequency band provide excellent depth penetration, the medium frequency excels at detail like bottom structure and tight holding fish targets in mid depth while the high frequency excels at shallow water performance, bottom detail and target resolution.

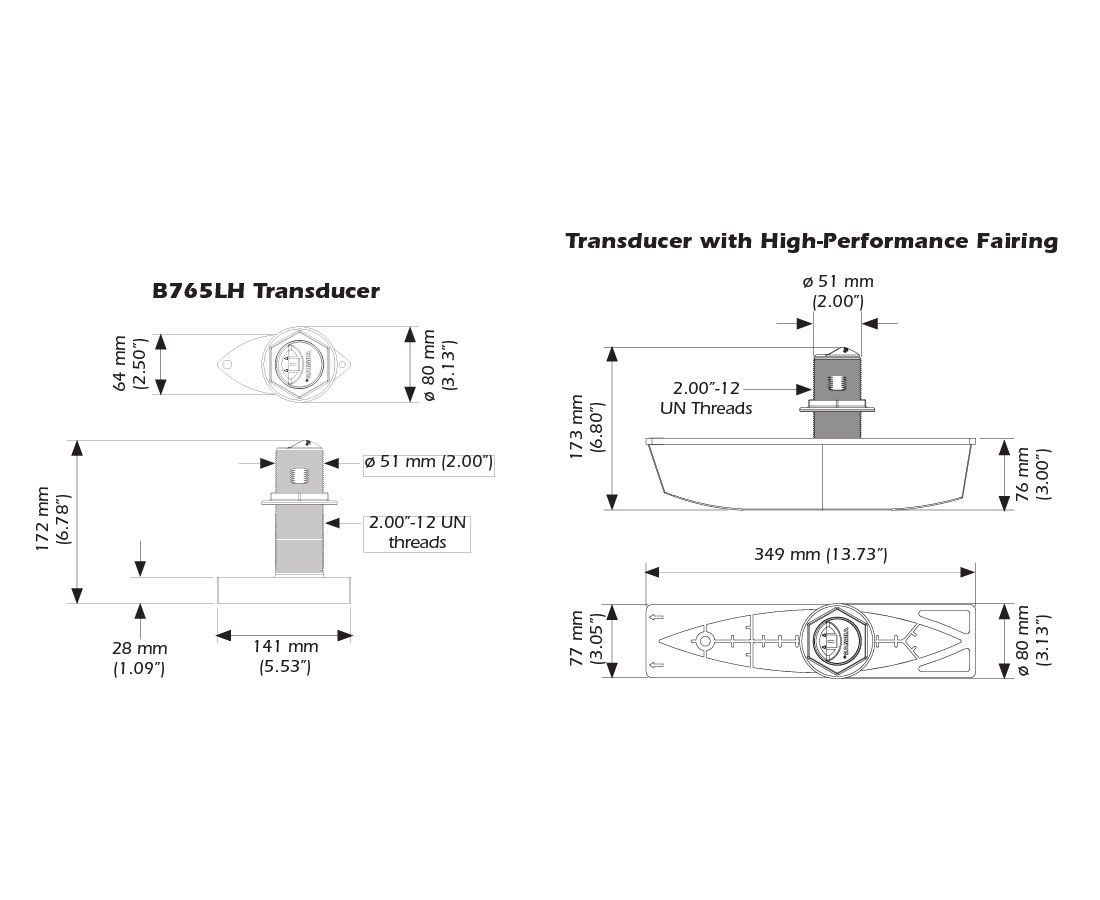

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).
Features
- Depth and fast-response water-temperature sensor
- Up to 115 kHz of total bandwidth from one transducer means great shallow and deep-water performance
- Bronze transducer housing with high-performance fairing for improved high-speed performance
- Recommended boat size: Up to 30' (9m)
- Hull Type: Fiberglass or wood
- Interfaces to any compatible CHIRP Sounder with CP450c connector
Style: Thru-Hull
Hull Deadrise: Up to 24° with fairing
Cable Length: 33' (10m)
Monitors: Depth/temperature
Material: Bronze housing, Urethane acoustic window
Compatible Hull Material: Fiberglass or wood
Transmit Power:
- High/Med: 600W
- Low: 300W
Frequency/Beam width:
- Low: 40-75 kHz (32°-21° beam)
- Medium: 80-130 kHz (24°-16° beam)
- High: 130-210 kHz (15°-9° beam)
Depth:
- Low: 1200'(365m)
- Medium: 700'(213m)
- High: 700'(213m)
