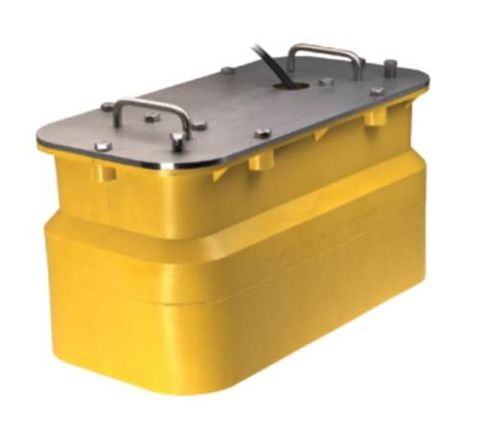

Raymarine R111 2kW CHIRP In-Hull Transducer
This powerhouse, 2kW CHIRP transducer delivers extreme target detail, bottom discrimination and bait and game fish separation. The R111 is packed with 16 internal ceramics and up to 117kHz of total CHIRP range which offers specific frequencies excel at detecting certain species of fish
The R111 has a fifteen element, low-frequency array that operates between 38 kHz and 75 kHz for excellent deep-water performance.
The medium frequency ceramic operates between 80 kHz to 130 kHz making this excellent for identifying targets suspended close to the bottom, on structure and within the water column.
The high frequency ceramic operates between 130 kHz and 210 kHz with a narrow (8° to 4°), perfect for pick apart structure and pinpointing tight holding fish in structure.
Style: In-Hull

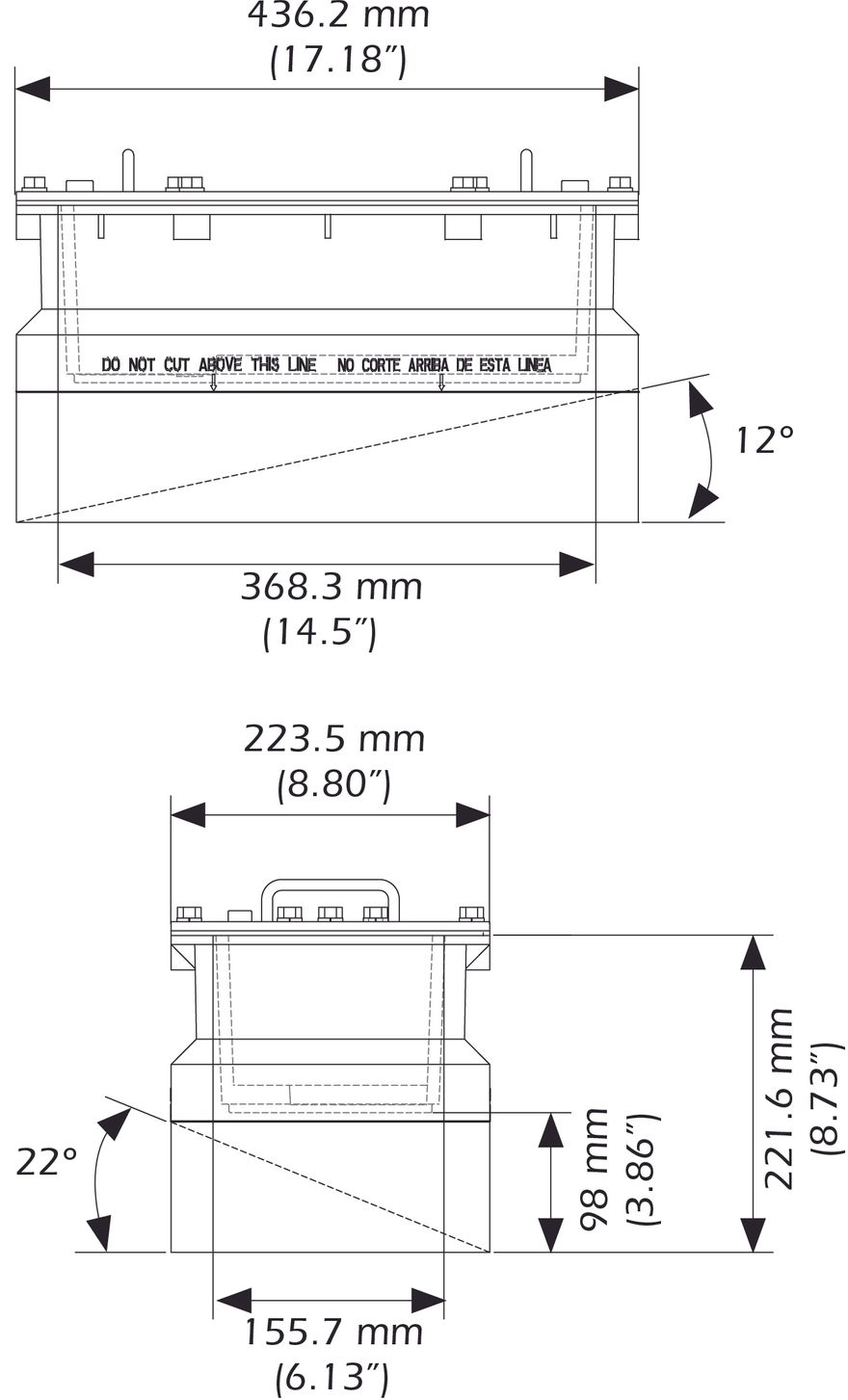

Deadrise angle: Up to 22° (short side), up to 12° (long side)
Cable Length: 33' (10m)
Monitors: Depth
Material: Urethane housing with plastic mounting tank
Compatible Hull Materials: Solid Fiberglass
Transmit Power: 2kW
Frequency/Beam width:
- Low: 42-65 kHz (19°-10° beam)
- Medium: 85-135 kHz (13°-8° beam)
- High: 130-210 kHz (8°-4° beam)
Depth:
- Low: 6000'(1828m)
- Medium: 3000'(914m)
- High: 1500'(457m)
NOTE: Also available as pocket/keel (PM111LH) and external (R109LH) mounts. and Compatible with CP470/570.
