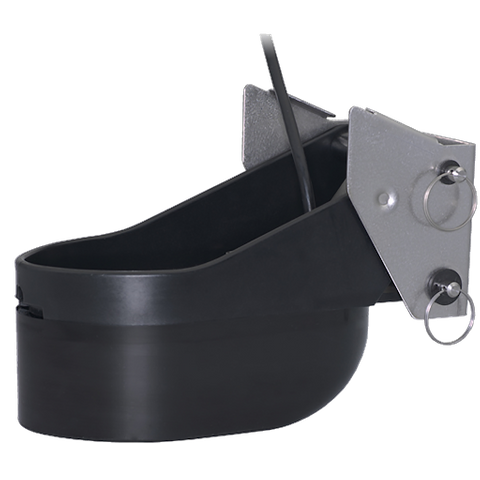

Raymarine TM275 1kW CHIRP Transom Mount Transducer
Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready TM275 transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beam width provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.
The low frequency band and 1kW of power also provides great deeper water performance. Get the best of both worlds with Airmar’s dual frequency Chirp-ready TM275 transducer with wide beam coverage.
*All wide beam products come with a 2M pigtail off the transducer. Pair with a CHIRP Transducer Extension Cable (3, 5 or 10M) for a complete transducer installation.
Features
- Depth and fast-response water-temperature sensor
- 1 kW power for great deep-water performance to 3000’ (914m)
- High wide beam width provides more coverage under the boat for detecting fish in the upper water column
- 123 kHz of total bandwidth from one transducer
- Transom-mount transducer with stainless steel mounting bracket
- Recommended boat size: Up to 32' (10m)
- Hull Type: Fiberglass, wood, aluminium or steel
- Interfaces to any compatible CHIRP Sounder with CP450c connector
Style: Transom Mount
Transom Angle: 3° to 21°
Cable Length: 6' (2m)
Boat size: up to 10 m (32')
Monitors: Depth/temperature
Material: Urethane
Compatible Hull type: Fiberglass, wood, aluminum or steel
Transmit Power: 1kW
Frequency/Beam width:
- Low: 42-65 kHz (25°-16° beam)
- High-Wide: 150-250 kHz (25° beam)
Depth:
- Low: 3000' (914m)
- High-Wide: 800'(243m)
