Raymarine R509 3kW CHIRP Thru-Hull Wide Beam with Fairing
Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready R509LH-W transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beam width provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.
The low frequency band is rated to 3 kW and provides amazing deeper water performance to 10000'. Get the best of both worlds with Airmar’s dual frequency Chirp-ready PM275LH-W transducer with wide beam coverage.
**All wide beam products come with a 2M pigtail off the transducer. Pair with a CHIRP Transducer Extension Cable (3, 5 or 10M) for a complete transducer installation.
Features
- Depth and fast-response water-temperature sensor
- 3 kW power for great deep-water performance to 10,000’ (3048m)
- High wide beam width provides more coverage under the boat for detecting fish in the upper water column
- Urethane transducer housing with high-performance fairing
- Recommended boat size: above 40' (12m)
- Hull Type: Fiberglass, wood and metal
- Compatible with CP470/570

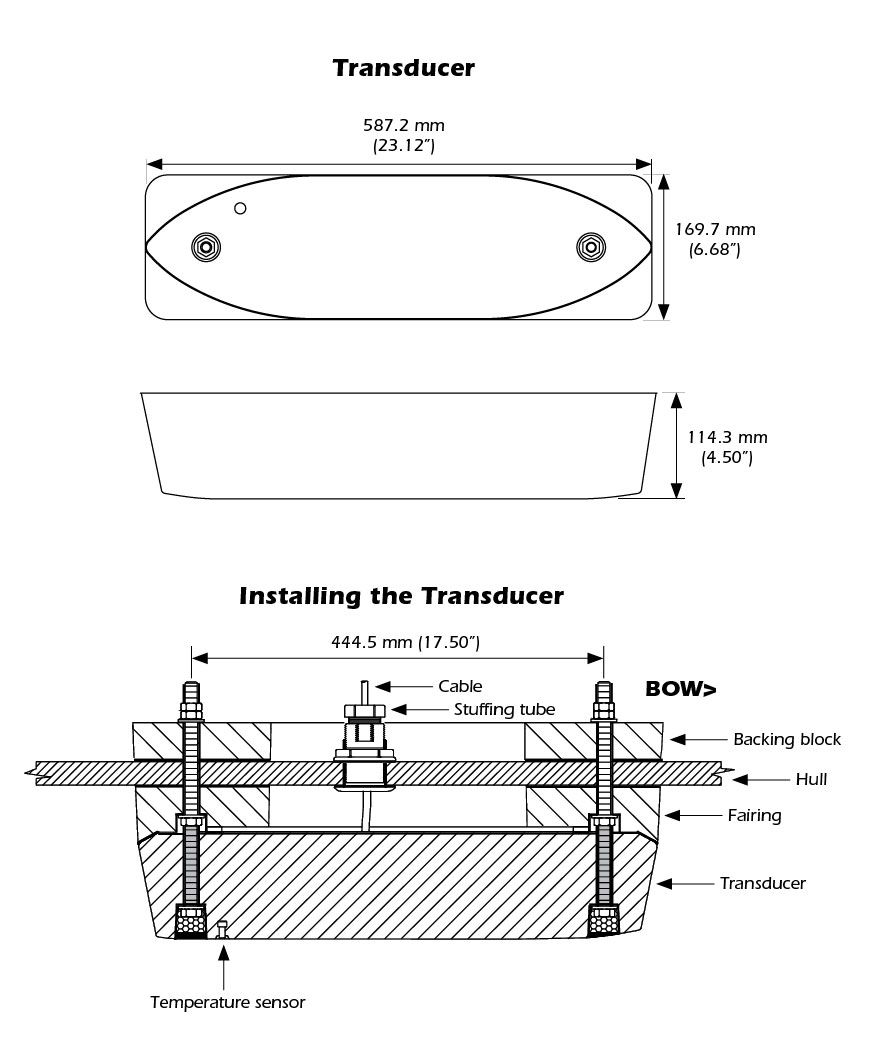

Style: Thru-Hull
Deadrise angle: up to 25°
Cable Length: 6' (2m)
Boat size: 12 m (40') and above
Monitors: Depth/temperature
Material: Urethane
Compatible Hull Material: Fiberglass, wood, or metal
Transmit Power: 3kW
Frequency/Beam width:
- Low: 28-60 kHz (23°-9° beam)
- High-Wide: 150-250 kHz (25° beam)
Depth:
- Low: 10,000'(3048m
- High-Wide: 800'(243m)
