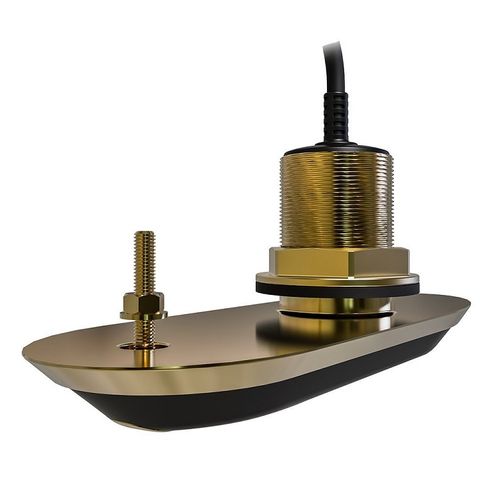

Raymarine RealVision 3D RV Bronze Thru-Hull Transducers

Designed for inboard or outboard boats, the RV-2xx Series Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-2xx system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail

Features

Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, High frequency CHIRP
One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions
Depth and fast-response water-temperature sensor

Cable Length: 6.5' (2m)

Monitor: Depth and Temperature

Material: Bronze

Compatible hull material: Fiberglass, Wood

Max depth:

3D: 300'
DownVision: 600'
Port: 300'
Starboard: 300'
Conical: 900'

Frequency (KHz): RealVision and High CHIRP

Beam Width (L/H):

3D: 180°
Down: 60°
Conical: 25°

Code	Product Details	Enquire
A80466	RV-212P, Bronze, Port 12 degree	Make an Enquiry
A80467	RV-212S, Bronze, Starboard 12 degree	Make an Enquiry
A80468	RV-220P, Bronze, Port 20 degree	Make an Enquiry
A80469	RV-220S, Bronze, Starboard 20 degree	Make an Enquiry
