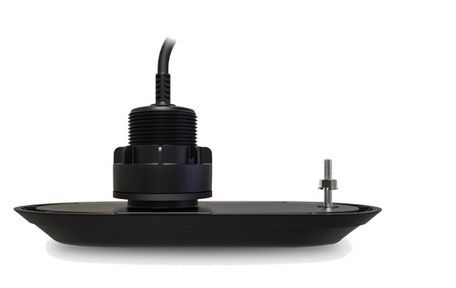

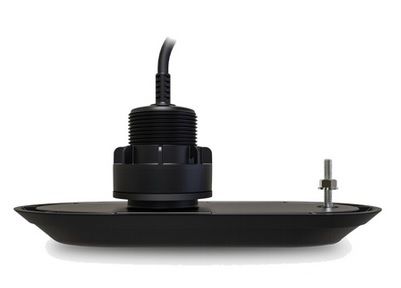

Raymarine RealVision 3D RV Plastic Thru-Hull Transducers
Designed for inboard or outboard boats, the RV-3xx Series Plastic Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.
The RV-312 system features rugged plastic through hull bodies suitable for fiberglass, steel or aluminium hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail.
Features
- Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
- Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
- Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
- Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, High frequency CHIRP
- One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions
- Depth and fast-response water-temperature sensor
Style: Thru-Hull
Deadrise angle: 0-5°
Cable length: 6.5' (2m)
Monitor: Depth and Temperature
Material: Plastic
Compatible hull material: Fiberglass and Metal
Max Depth:
- 3D: 300'
- DownVision: 600'
- Port: 300'
- Starboard: 300'
- Conical: 900'
Frequency (KHz): RealVision / High CHIRP
Beam Width (L/H):
- 3D: 180°
- Down: 60°
- Conical: 25°
